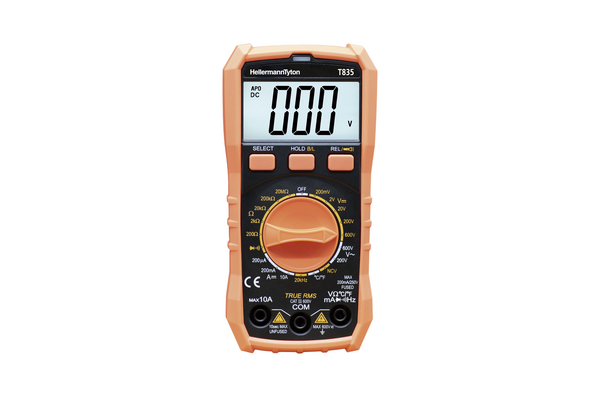

T835 600V AC/DC
Art.-No. 911-00006
| T835-MET/PL-GY/YE
|
Copied
- Continuity test, Diode test, Data Hold, Backlight, Temperature, Auto power off, Noncontact voltage, EF detection (NCV), Torch. Measurement capabilities, DIY & general electrical.
More products in this product group:
| CAT-Rating | CATIII 600V |
| Colour | Dark Grey (DKGY), Yellow (YE) |

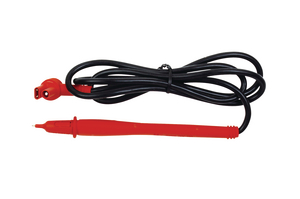

| Content Accessories | Temp Probe TBMTEMPPROBE, Test Leads |
| Description | Multimeter Digital 600V AC/DC |
| Key product features | True Root Mean Square (TRMS) |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | T835-MET/PL-GY/YE |
| Package Content packed in | pack |
| Part No. | T835 |
| Power Supply | 1 x 9V Battery |
| Product Family | Multimeter Digital 600V AC/DC |
| Product Group | T835 |
| Type | T835 |
| Typical Application | Used for DIY and general electrical testing measuring AC/DC voltage current resistance and temperature. It is a handheld small and safe digital multimeter with 3 1/2 digits full function and high performance for measuring DCV, ACV, DCA, resistance, temperature, frequency, diode, continuity test, thus it is a portable and ideal tool for users. |
| Height (H) | 35mm |
| Length (L) | 150mm |
| Temperature Measuring Range (+Accuracy) | -20°C to +1000°C (Accuracy: ±1.0 % + 3 Digit) |
| Width (W) | 73mm |
Feature
[AC Voltage (V)]
Parameter
[200V/ 600 V]
Accuracy
[±1.2 % + 10 Digit(s)]
Feature
[DC Current (A)]
Parameter
[200uA, 200 mA, 10 A]
Accuracy
[±1.0 % + 10 Digits, ±1.2% + 8 Digits, ±2.0% + 5 Digits]
Feature
[DC Voltage (V)]
Parameter
[200 mV, 2V/ 20V/ 200 V, 600 V]
Accuracy
[±0.5 % + 5 Digits, ±0.5% + 3 Digits, ±1.0% + 10 Digits]
Feature
[Display]
Parameter
[3½ Digits]
Accuracy
[1 999 Counts]
Feature
[Frequency (Hz)]
Parameter
[20 kHz]
Accuracy
[±1.0% + 10 Digits]
Feature
[Resistance (Ω)]
Parameter
[200 Ω, 2kΩ/ 20kΩ/ 200 kΩ, 20 MΩ]
Accuracy
[±0.8 % + 5 Digits, ±0.8% + 3 Digits, ±1.0% + Digits]
Feature
[Temperature (°C)]
Parameter
[-20°C - 1000 °C, -4°F - 1832°F]
Accuracy
[
≥ 400°C ±1.5% + 15 Digits,
≥ 752°F ±1.5% + 15 Digits]
≥ 400°C ±1.5% + 15 Digits,
≥ 752°F ±1.5% + 15 Digits]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
200V/ 600 V |
±1.2 % + 10 Digit(s) |
|
DC Current (A) |
200uA 200 mA 10 A |
±1.0 % + 10 Digits ±1.2% + 8 Digits ±2.0% + 5 Digits |
|
DC Voltage (V) |
200 mV 2V/ 20V/ 200 V 600 V |
±0.5 % + 5 Digits ±0.5% + 3 Digits ±1.0% + 10 Digits |
|
Display |
3½ Digits |
1 999 Counts |
|
Frequency (Hz) |
20 kHz |
±1.0% + 10 Digits |
|
Resistance (Ω) |
200 Ω 2kΩ/ 20kΩ/ 200 kΩ 20 MΩ |
±0.8 % + 5 Digits ±0.8% + 3 Digits ±1.0% + Digits |
|
Temperature (°C) |
-20°C - 1000 °C -4°F - 1832°F |
≥ 400°C ±1.5% + 15 Digits ≥ 752°F ±1.5% + 15 Digits |
