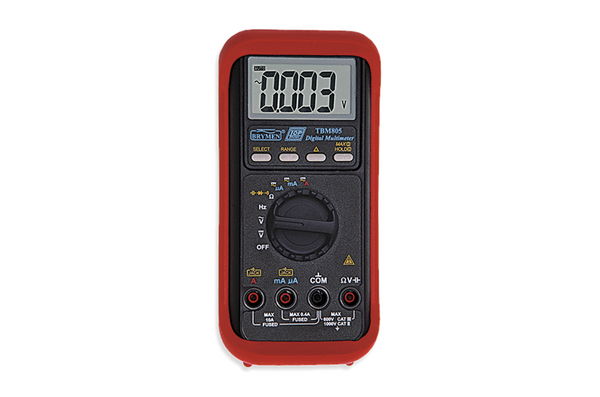

TBM805 MULTIMETER
Art.-No. 911-00009
| TBM805-MET/PL-BK/RD
Copied
- Splash proof
- Beep guard
- Rugged construction
- Data hold
- Min/max
- Relative zero
- Auto Range
More products in this product group:
| Application | Measuring AC/DC voltage up to 1000V, ideal for diagnosing house an automotive electrical system. |
| CAT-Rating | CATII 1000V, CATIII 600V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | Test leads, TBMTEMPPROBE, |
| Description | Multimeter Digital 1000V AC/DC |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM805-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM805 |
| Power Supply | 2 x 1.5V AAA Batteries |
| Product Family | TBM805 |
| Product Group | General Purpose Digital Multimeter |
| Type | TBM805 |
| AC Current (+Accuracy) | 400µA/ 400µA/ 40mA/ 400mA/ 4/ 10A (±1.8% + Digit) |
| AC Voltage (+Accuracy) | 400mV/ 4/ 40/ 400/ 1000V (4 -400V/ ±1.5% + 5 Digit, 1000V ±4.0% + 5 Digit) |
| Capacitance (+Accuracy) | 500nF/ 5µF/ 50µF/ 500µF/ 500µF/ 3000µF (±3.5% + 6 Digit) |
| DC Current (+Accuracy) | 400µA/ 4000µA/ 40mA/ 400mA/ 4/ 10A |
| DC Voltage (+Accuracy) | 400mV/ 4/ 40/ 400/ 1000V (±1.0% + 4 Digit) |
| Frequency (+Accuracy) | 50/ 500/ 5KHz/ 50KHz/ 500KHz/ 1MHz (±0.5% + 4 Digit) |
| Height (H) | 55mm |
| Length (L) | 189mm |
| Resistance (+Accuracy) | 400/ 4kΩ/ 40kΩ/ 400kΩ/ 4MΩ/ 40MΩ (±2.0% + 4 Digit) |
| Temperature Measuring Range (+Accuracy) | -20 to 300°C (±2.0% + 3°C) |
| Width (W) | 97mm |
Feature
[AC Current (A)]
Parameter
[400µA/ 4000µA/ 40mA/ 400mA/ 4/ 10 A]
Accuracy
[±1.8 % + 4 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[500µF/ 5µF/ 50µF/ 500µF/ 3000 µF]
Accuracy
[±3.5 % + 6 Digit(s)]
Feature
[DC Current (A)]
Parameter
[400µA/ 4000µA/ 40mA/ 400mA/ 4/ 10 A]
Accuracy
[±1.2% + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[400 mV/ 4/ 40/ 400/ 1000 A]
Accuracy
[4 - 400V/ ±1.5% 5 digits, 1000V ±4.0% + 5 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[400 mV/ 4/ 40/ 400/ 1000 V]
Accuracy
[±1.0 % + 4 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[4 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[50/ 500/ 5 kHz/ 50 kHz/ 500 kHz/ 1MHz]
Accuracy
[±0.5 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[400/ 4 kΩ/ 40 kΩ/ 400 kΩ/ 4MΩ/ 40 MΩ]
Accuracy
[±2.0 % + 4 Digit)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
400µA/ 4000µA/ 40mA/ 400mA/ 4/ 10 A |
±1.8 % + 4 Digit(s) |
|
Capacitance (F) |
500µF/ 5µF/ 50µF/ 500µF/ 3000 µF |
±3.5 % + 6 Digit(s) |
|
DC Current (A) |
400µA/ 4000µA/ 40mA/ 400mA/ 4/ 10 A |
±1.2% + 3 Digit(s) |
|
DC Voltage (V) |
400 mV/ 4/ 40/ 400/ 1000 A |
4 - 400V/ ±1.5% 5 digits, 1000V ±4.0% + 5 Digit(s) |
|
DC Voltage (V) |
400 mV/ 4/ 40/ 400/ 1000 V |
±1.0 % + 4 Digit(s) |
|
Display |
3 Digit(s) |
4 000 Counts |
|
Frequency (Hz) |
50/ 500/ 5 kHz/ 50 kHz/ 500 kHz/ 1MHz |
±0.5 % + 4 Digit(s) |
|
Resistance (Ω) |
400/ 4 kΩ/ 40 kΩ/ 400 kΩ/ 4MΩ/ 40 MΩ |
±2.0 % + 4 Digit) |
