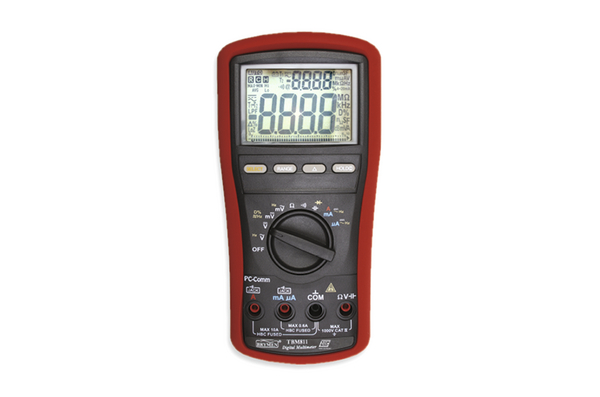

TBM811 Multimeter Digital 1000V AC/DC


Art.-No. 911-00015

| TBM811-MET/PL-BK/RD

 |

Copied
852441

    • Splash/Drop proof
    • 1000V AC/DC
    • USB interface
    • Dual display
    • Backlit
    • Auto Range
    Application General purpose digital multimeter. used to verify voltage, current, and resistance in fixed installations
    CAT-Rating CATIV 1000V
    Colour Black (BK), Red (RD)
    Content Accessories USB Cable, software TBU6X, USB adaptor, magnetic hanger TBMH01
    Description Multimeter Digital 1000V AC/DC
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION TBM811-MET/PL-BK/RD
    Package Content packed in box
    Part No. TBM811
    Power Supply 1X 9V Battery
    Product Family TBM811
    Product Group General Purpose Digital Multimeter
    Type TBM811
    Height (H) 64.5mm
    Length (L) 208mm
    Width (W) 103mm
    Feature
    [AC Current (A)]
    Parameter
    [600µ/ 6000µ/ 60 mA/ 600 mA/ 6.1 A]
    Accuracy
    [1.0 % + 4 Digit(s)]
    Feature
    [AC Voltage (V)]
    Parameter
    [60 mV/ 600 mV/ 6/ 600/ 1000 V]
    Accuracy
    [2.0 % + 3 Digit(s)]
    Feature
    [Capacitance (F)]
    Parameter
    [60nF/ 600nF/ 6µ/ 60µ/ 600µ/ 20mF]
    Accuracy
    [5.0 % + 5 Digit(s)]
    Feature
    [DC Current (A)]
    Parameter
    [600µ/ 6000µ/ 6 mA/ 600 mA/ 6.0 A]
    Accuracy
    [0.2 % + 4 Digit(s)]
    Feature
    [DC Voltage (V)]
    Parameter
    [60 V/ 600 mV/ 6/ 600/ 1000 V]
    Accuracy
    [0.08 % + 2 Digit(s)]
    Feature
    [Display]
    Parameter
    [3-9/10 Digit(s)]
    Accuracy
    [6000 Counts, 10 000 Counts]
    Feature
    [Frequency (Hz)]
    Parameter
    [5 Hz/ 1MHz]
    Accuracy
    [0.5 % + 4 Digit(s)]
    Feature
    [Resistance (Ω)]
    Parameter
    [40.1Ω/ 60 MΩ]
    Accuracy
    [1.5 % + 5 Digit(s)]
    Feature Parameter Accuracy
    AC Current (A)
    		 600µ/ 6000µ/ 60 mA/ 600 mA/ 6.1 A
    		 1.0 % + 4 Digit(s)
    AC Voltage (V)
    		 60 mV/ 600 mV/ 6/ 600/ 1000 V
    		 2.0 % + 3 Digit(s)
    Capacitance (F)
    		 60nF/ 600nF/ 6µ/ 60µ/ 600µ/ 20mF
    		 5.0 % + 5 Digit(s)
    DC Current (A)
    		 600µ/ 6000µ/ 6 mA/ 600 mA/ 6.0 A
    		 0.2 % + 4 Digit(s)
    DC Voltage (V)
    		 60 V/ 600 mV/ 6/ 600/ 1000 V
    		 0.08 % + 2 Digit(s)
    Display
    		 3-9/10 Digit(s)
    		 6000 Counts
    10 000 Counts
    Frequency (Hz)
    		 5 Hz/ 1MHz
    		 0.5 % + 4 Digit(s)
    Resistance (Ω)
    		 40.1Ω/ 60 MΩ
    		 1.5 % + 5 Digit(s)
    Shelf Life 12 months
    Specifications
    GTIN-13 / EAN 6005242058011
