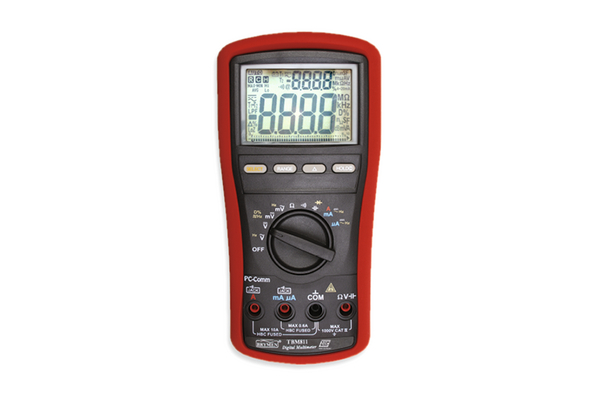

TBM811 Multimeter Digital 1000V AC/DC
Art.-No. 911-00016
| TBM811XEX-MET/PL-BK/RD
|
Copied
- Splash/Drop proof
- 1000V AC/DC
- USB interface
- Dual display
- Backlit
- Auto Range
Show more
Show less
More products in this product group:
| Application | General purpose digital multimeter. used to verify voltage, current, and resistance in fixed installations |
| CAT-Rating | CATIV 1000V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | USB Cable, software TBU6X, USB adaptor, magnetic hanger TBMH01 |
| Description | Multimeter Digital 1000V AC/DC |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM811XEX-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM811XEX |
| Power Supply | 1X 9V Battery |
| Product Family | TBM811 |
| Product Group | General Purpose Digital Multimeter |
| Type | TBM811XEX |
| Height (H) | 64.5mm |
| Length (L) | 208mm |
| Width (W) | 103mm |
Feature
[AC Current (A)]
Parameter
[600µ/ 6000µ/ 60 mA/ 600 mA/ 6.1 A]
Accuracy
[1.0 % + 4 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[60 mV/ 600 mV/ 6/ 600/ 1000 V]
Accuracy
[2.0 % + 3 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[60nF/ 600nF/ 6µ/ 60µ/ 600µ/ 20mF]
Accuracy
[5.0 % + 5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[600µ/ 6000µ/ 6 mA/ 600 mA/ 6.0 A]
Accuracy
[0.2 % + 4 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[60 V/ 600 mV/ 6/ 600/ 1000 V]
Accuracy
[0.08 % + 2 Digit(s)]
Feature
[Display]
Parameter
[3-9/10 Digit(s)]
Accuracy
[6000 Counts, 10 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[5 Hz/ 1MHz]
Accuracy
[0.5 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[40.1Ω/ 60 MΩ]
Accuracy
[1.5 % + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
600µ/ 6000µ/ 60 mA/ 600 mA/ 6.1 A |
1.0 % + 4 Digit(s) |
|
AC Voltage (V) |
60 mV/ 600 mV/ 6/ 600/ 1000 V |
2.0 % + 3 Digit(s) |
|
Capacitance (F) |
60nF/ 600nF/ 6µ/ 60µ/ 600µ/ 20mF |
5.0 % + 5 Digit(s) |
|
DC Current (A) |
600µ/ 6000µ/ 6 mA/ 600 mA/ 6.0 A |
0.2 % + 4 Digit(s) |
|
DC Voltage (V) |
60 V/ 600 mV/ 6/ 600/ 1000 V |
0.08 % + 2 Digit(s) |
|
Display |
3-9/10 Digit(s) |
6000 Counts 10 000 Counts |
|
Frequency (Hz) |
5 Hz/ 1MHz |
0.5 % + 4 Digit(s) |
|
Resistance (Ω) |
40.1Ω/ 60 MΩ |
1.5 % + 5 Digit(s) |
