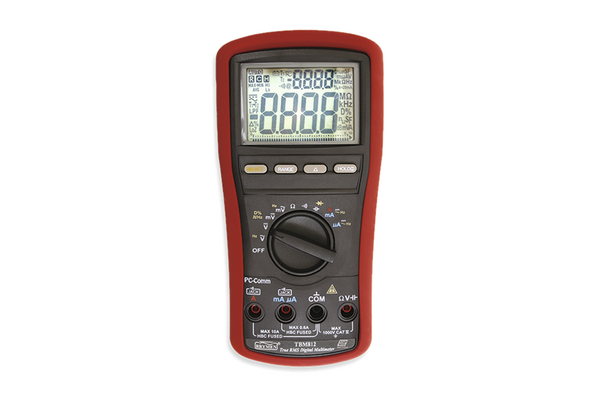

TBM812 Multimeter
Art.-No. 911-00017 | TBM812-MET/PL-BK/RD

Copied

    • Splash/Drop proof
    • 1000V AC/DC
    • USB interface
    • Dual display
    • Backlit
    • Auto Range
    Application Used for diagnosing circuit, measuring 1000V AC/DC and testing continuity
    CAT-Rating CATIV 1000V
    Colour Black (BK), Red (RD)
    Content Accessories USB Cable and software TUB86X, USB adaptor Magnet hanger TBMH01
    Description Multimeter Digital 1000V AC/DC
    Digits in display 3
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION TBM812-MET/PL-BK/RD
    Package Content packed in box
    Part No. TBM812
    Power Supply 1X 9V Battery
    Product Family TBM812
    Product Group General Purpose Digital Multimeter
    Type TBM812
    AC Current (+Accuracy) 600µ/ 6000µ/ 60mA/ 600mA/ 6.10A (0.2% + 4 Digit
    AC Voltage (+Accuracy) 60mV/ 600mV/ 6/ 600/ 1000V (2.0% + 3 Digit)
    Capacitance (+Accuracy) 60nF/ 600nF/ 6µ/ 60µ/ 600µ/ 20mF (5.0% + 5 Digit)
    DC Current (+Accuracy) 600µ/ 6000µ/ 60mA/ 600mA/ 6.10A (0.2% + 4 Digit)
    DC Voltage (+Accuracy) 60mV/ 600mV/ 6/ 600/ 1000V (0.8% + 2 Digit)
    Frequency (+Accuracy) 5Hz / 1MHz (0.004& + 4 Digit)
    Height (H) 64.5mm
    Length (L) 208mm
    Resistance (+Accuracy) 40.1Ω / 60MΩ (1.5% + 5 Digit)
    Width (W) 103mm
    Feature
    [AC Current (A)]
    Parameter
    [600µ/ 6000µ/ 60mA/ 600mA/ 6.10 A]
    Accuracy
    [1.0% + 4 Digit(s)]
    Feature
    [AC Voltage (V)]
    Parameter
    [60mV/ 600mV/ 6/ 600/ 1000 V]
    Accuracy
    [2.0 % + 3 Digit(s)]
    Feature
    [Capacitance (F)]
    Parameter
    [60nF/ 600nF/ 6µ/ 600µ/ 20mF]
    Accuracy
    [5.0 % + 5 Digit(s)]
    Feature
    [DC Current (A)]
    Parameter
    [60µ/ 6000µ/ 60mA/ 600mA/ 6.10 A]
    Accuracy
    [0.2 % + 4 Digit(s)]
    Feature
    [DC Voltage (V)]
    Parameter
    [60mV/ 600mV/ 6/ 600/ 1000 V]
    Accuracy
    [0.08 % + 2 Digit(s)]
    Feature
    [Display]
    Parameter
    [3 Digit(s)]
    Accuracy
    [6000 Counts, 10000 Counts]
    Feature
    [Frequency (Hz)]
    Parameter
    [5Hz/ 1MHz]
    Accuracy
    [0.004 % + 4 Digit(s)]
    Feature
    [Resistance (Ω)]
    Parameter
    [40.1Ω/ 60 MΩ]
    Accuracy
    [1.5 % + 5 Digit(s)]
    Feature Parameter Accuracy
    AC Current (A)
    		 600µ/ 6000µ/ 60mA/ 600mA/ 6.10 A
    		 1.0% + 4 Digit(s)
    AC Voltage (V)
    		 60mV/ 600mV/ 6/ 600/ 1000 V
    		 2.0 % + 3 Digit(s)
    Capacitance (F)
    		 60nF/ 600nF/ 6µ/ 600µ/ 20mF
    		 5.0 % + 5 Digit(s)
    DC Current (A)
    		 60µ/ 6000µ/ 60mA/ 600mA/ 6.10 A
    		 0.2 % + 4 Digit(s)
    DC Voltage (V)
    		 60mV/ 600mV/ 6/ 600/ 1000 V
    		 0.08 % + 2 Digit(s)
    Display
    		 3 Digit(s)
    		 6000 Counts
    10000 Counts
    Frequency (Hz)
    		 5Hz/ 1MHz
    		 0.004 % + 4 Digit(s)
    Resistance (Ω)
    		 40.1Ω/ 60 MΩ
    		 1.5 % + 5 Digit(s)
    Shelf Life 12 months
    Specifications
    GTIN-13 / EAN 6005242069901
