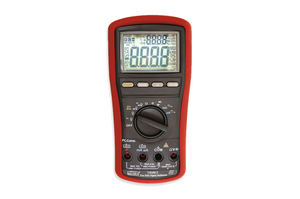

TBM812 Multimeter
Art.-No. 911-00018
| TBM812XEX-MET/PL-BK/RD
Copied
- Splash/Drop proof
- 1000V AC/DC
- USB interface
- Dual display
- Backlit
- Auto Range
More products in this product group:
| Application | Used for diagnosing circuit, measuring 1000V AC/DC and testing continuity |
| CAT-Rating | CATIV 1000V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | USB Cable and software TUB86X, USB adaptor Magnet hanger TBMH01 |
| Description | Multimeter Digital 1000V AC/DC |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM812XEX-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM812XEX |
| Power Supply | 1X 9V Battery |
| Product Family | TBM812 |
| Product Group | General Purpose Digital Multimeter |
| Type | TBM812XEX |
| AC Current (+Accuracy) | 600µ/ 6000µ/ 60mA/ 600mA/ 6.10A (0.2% + 4 Digit |
| AC Voltage (+Accuracy) | 60mV/ 600mV/ 6/ 600/ 1000V (2.0% + 3 Digit) |
| Capacitance (+Accuracy) | 60nF/ 600nF/ 6µ/ 60µ/ 600µ/ 20mF (5.0% + 5 Digit) |
| DC Current (+Accuracy) | 600µ/ 6000µ/ 60mA/ 600mA/ 6.10A (0.2% + 4 Digit) |
| DC Voltage (+Accuracy) | 60mV/ 600mV/ 6/ 600/ 1000V (0.8% + 2 Digit) |
| Frequency (+Accuracy) | 5Hz / 1MHz (0.004& + 4 Digit) |
| Height (H) | 64.5mm |
| Length (L) | 208mm |
| Resistance (+Accuracy) | 40.1Ω / 60MΩ (1.5% + 5 Digit) |
| Width (W) | 103mm |
Feature
[AC Current (A)]
Parameter
[600µ/ 6000µ/ 60mA/ 600mA/ 6.10 A]
Accuracy
[1.0% + 4 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[60mV/ 600mV/ 6/ 600/ 1000 V]
Accuracy
[2.0 % + 3 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[60nF/ 600nF/ 6µ/ 600µ/ 20mF]
Accuracy
[5.0 % + 5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[60µ/ 6000µ/ 60mA/ 600mA/ 6.10 A]
Accuracy
[0.2 % + 4 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[60mV/ 600mV/ 6/ 600/ 1000 V]
Accuracy
[0.08 % + 2 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6000 Counts, 10000 Counts]
Feature
[Frequency (Hz)]
Parameter
[5Hz/ 1MHz]
Accuracy
[0.004 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[40.1Ω/ 60 MΩ]
Accuracy
[1.5 % + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
600µ/ 6000µ/ 60mA/ 600mA/ 6.10 A |
1.0% + 4 Digit(s) |
|
AC Voltage (V) |
60mV/ 600mV/ 6/ 600/ 1000 V |
2.0 % + 3 Digit(s) |
|
Capacitance (F) |
60nF/ 600nF/ 6µ/ 600µ/ 20mF |
5.0 % + 5 Digit(s) |
|
DC Current (A) |
60µ/ 6000µ/ 60mA/ 600mA/ 6.10 A |
0.2 % + 4 Digit(s) |
|
DC Voltage (V) |
60mV/ 600mV/ 6/ 600/ 1000 V |
0.08 % + 2 Digit(s) |
|
Display |
3 Digit(s) |
6000 Counts 10000 Counts |
|
Frequency (Hz) |
5Hz/ 1MHz |
0.004 % + 4 Digit(s) |
|
Resistance (Ω) |
40.1Ω/ 60 MΩ |
1.5 % + 5 Digit(s) |
