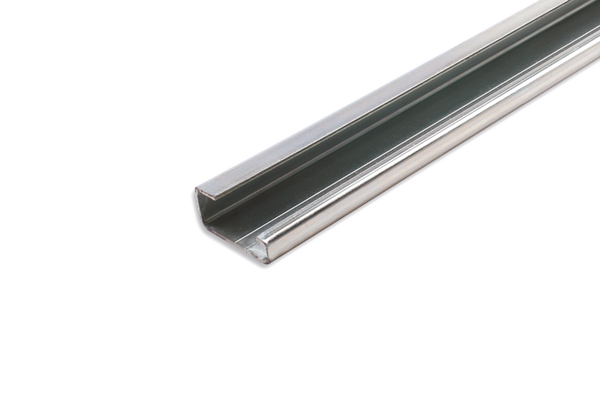

DIN Rail : TS32

DIN Rail MountingArticle number: 181-00706


  • Made of cold-rolled steel
  • Mounting rails are notable for their highly accurate fit
  • Conform to all relevant DIN standards
  • Comprehensive programme makes every type of fixing possible
  • Mounting rails are avaiable in 2 different coatings: galvanic zinc plating (white chromated) and hot-dip galvanized (sendzimir galvanized)
  • The white chromated mounting rails offer superior corrosion protection
  • Consists of anchor and top hat rails with and without punched holes

Certifications & Approvals


The DIN Rail anchor rails are used for building control panels. Routing cables and wires (for instance, control cables, power supplies) in a control panel is also a very common area of application.
The top hat rails are used for mounting switching devices, controls, relays, etc. in control panels.

Colour Metal (ML)
Description DIN RAIL 16.5MM X 15MM X 1.5 LENGTH 2M
Pack Cont. 2m
Package Quantity per EA
Part No. TS32
Product Family DIN Rail Mounting
Product Group DIN Rail
Variant DIN rail acc. EN60715
Height (H) 15.0mm
Length (L) 2m
Thickness (T) 1.5mm
Width (W) 16.5mm
Material Steel (ST)
Material ST
EAN / GTIN 6005242007798
