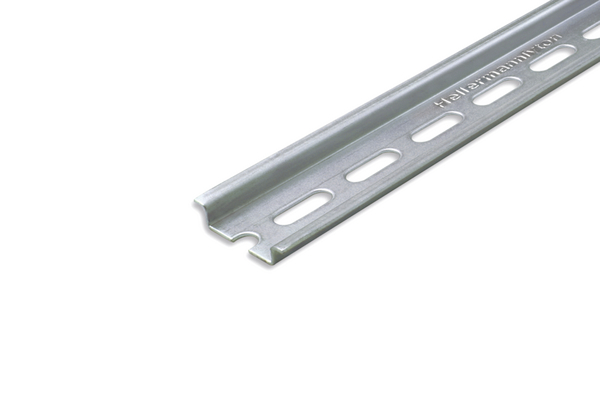

DIN Rail TS35S

DIN Rail Mounting, Article number: 181-00701

Features

  • Made of cold-rolled steel
  • Mounting rails are notable for their highly accurate fit
  • Conform to all relevant DIN standards
  • Comprehensive programme makes every type of fixing possible
  • Mounting rails are avaiable in 2 different coatings: galvanic zinc plating (white chromated) and hot-dip galvanized (sendzimir galvanized)
  • The white chromated mounting rails offer superior corrosion protection
  • Consists of anchor and top hat rails with and without punched holes

Certifications & Approvals

Application

The DIN Rail anchor rails are used for building control panels. Routing cables and wires (for instance, control cables, power supplies) in a control panel is also a very common area of application.
The top hat rails are used for mounting switching devices, controls, relays, etc. in control panels.

Colour Metal (ML)
Description DIN RAIL SLOTTED 35MM X 7.5MM X 1MM LENGTH 2M
GLOBAL PART DESCRIPTION TS35S-ST-ML
Pack Cont. 2m
Package Quantity per EA
Part No. TS35S
Product Family DIN Rail Mounting
Product Group DIN Rail
Punched YES
Variant DIN rail acc. EN60715
Height (H) 7.5mm
Hole Size (HS) 6mm
Length (L) 2m
Thickness (T) 1mm
Width (W) 35mm
Material Steel (ST)
Material ST
Specifications
EAN / GTIN 6005242007828
