RA1BK-PVC-BK


Art.-No. 911-01929

| RA1BK-PVC-BK

 |

Copied
EdgeGuard protection against sharp panel edges.

    This product is not available anymore.

    • Very flexible
    • Easy to apply
    • Protects cables from chafing on bulkheads
    • Operating Temperature -65°C to +105°C
    Colour Black (BK)
    Description PVC Beading strip is used to protect cables routed through sharp-edged cutout sections. It can also be used to provide an attractive finish to panel edges.
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION RA1BK-PVC-BK
    Part No. RA1BK
    Type RA1BK

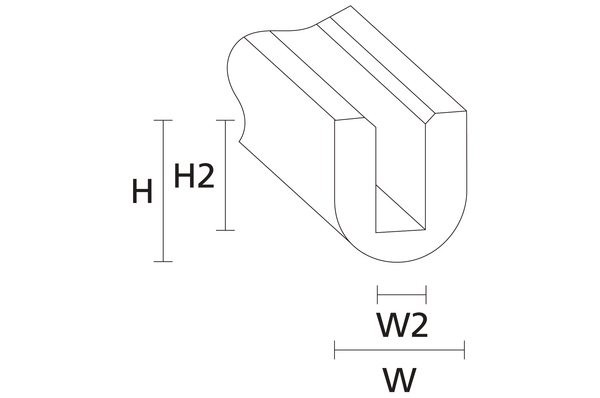

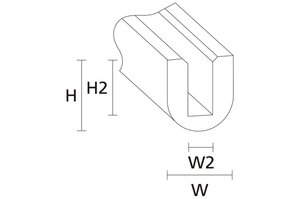

    Height (H) 7.1mm
    Height (H2) 5.6mm
    Width (W) 6.4mm
    Width (W2) 2.4mm
    Flammability UL 94 HB
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242050343
