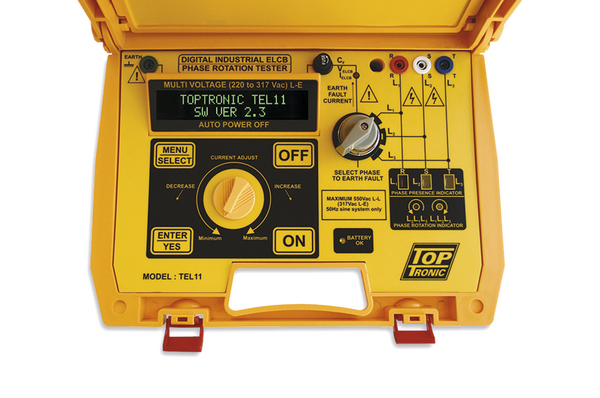

ELCB Phase Rotation
Art.-No. 911-00152
| TEL11OLED
Copied
- Indicates phase presence
- Indicates phase rotation
- TEST for disconnection sensitivity
- TEST for disconnection time
- Select one of 3-phase to test ELCB
- Measure voltage phase to Earth
- Over temperature protection
- Phase polarity trip indicator
More products in this product group:
| Application | This test instrument is a combination of 3-phase presence and rotation indicator combined with a 3-phase industrial earth leakage tester and measures the current at which the breaker disconnects or the time taken to disconnect. The earth leakage can be utilised on a single phase (up to 317 Vac line to earth) or a 3-phase powered system (550 V line to line or phase to phase) with a protective earth conductor. |
| Description | ELCB Phase Rotation 525V |
| PART DESCRIPTION | TEL11OLED |
| Package Content packed in | box |
| Part No. | TEL11OLED |
| Power Supply | 8x 1.5V C Batteries Alkaline |
| Product Family | TEL11OLED |
| Product Group | ELCB / Polarity Testers |
| Type | TEL11OLED |
