FWO with 2 x SC SX APC Adaptors.
Art.-No. 857-01094 | FWOA-VX-VX/WH |

More products in this product group:

Application	The wall mounted fibre optic outlet allows a fibre optic cable to be connected directly into the end user apartment.
Colour	White (WH)
Connector Colour	Green (GN)
Connector Type	SC-APC
Content	Fibre Wall Outlet 2 x SC APC Simplex Adaptors Wall Mounting Kit
Description	FWO with 2 x SC SX APC Adaptors.
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	FWOA-VX-VX/WH
Product Family	Fibre Optic Internal Enclosure
Product Group	Fibre Wall Outlet
Splice Capacity	4

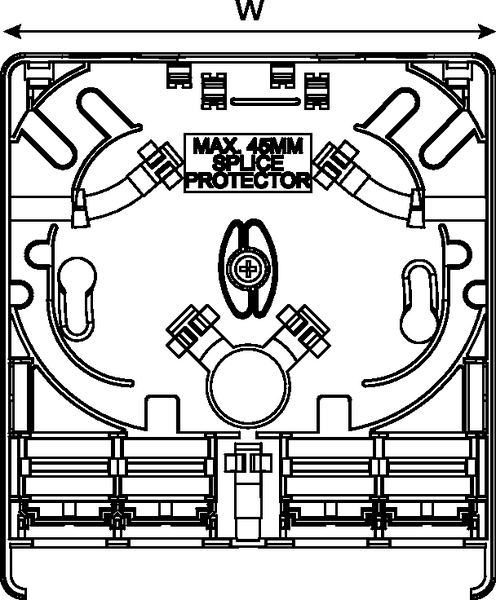

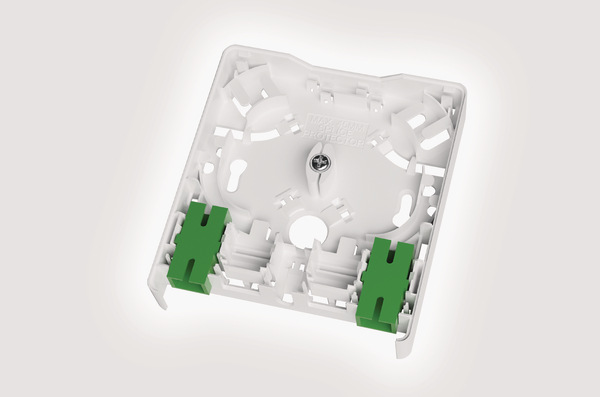

Technical Description	The fibre wall outlet is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The outlet has a cable entry point at the front, rear and on each side and is supplied with 2 SC APC Simplex fibre adaptors. Fibre management features ensure a minimum bend radius of 30mm is maintained as the bare fibre is routed through the outlet and strain relief and cable anchor points secure the incoming cable. Screw holes allow for easy installation and positioning, alternatively the recessed base means the closure can be fastened with adhesive, maintaining the outlet flush to the wall.
Type	FWOA-VX-VX/WH
