MDU S3 with SE-IR trays and LC DX PC Adaptors and Splitters
Art.-No. 857-01491 | MDU-S3-XWX-CP12L31:8 Details

  • Maximum 48 Fibre Splices
  • 24 LC PC Connections
  • 250µm IR Angled Fibre Management System with 3 1:8 LC PC PLC Splitters
  • 4 SE-IR Trays with 3A Splice Bridges
  • 3 x Entry/Exit Port Blanks
  • Strength Member Anchor
  • In-built spirit level
  • IP54/IK08
  • UV Stable
  • V0 Rating
Show more
Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
Adapter Capacity 12
Colour Grey RAL 7035 (RAL7035)
Connector Colour Blue (BU)
Connector Type LC
Content S3 Enclosure
250µm IR Fibre Management System
4 SE-IR Trays with 3A Splice Bridges
Adaptor Plate
12 LC PC Duplex Adaptors
3 1:8 Bare End to LC PC Splitters
3 x Entry/Exit Port Blanks
Cable Anchor
In-built spirit level
Fibre Picker
Wall Mounting Kit
Red and Green Polyspiral Tubing(2M)
Material Acrylonitrile Butadiene Styrene (ABS)
Pack Cont. 1pc.
Port count 7
Product Family Fibre Optic External/Internal Enclosure
Product Group S3 Series MDU/MBU Enclosures
Qty Trays 4
Splice Capacity 48

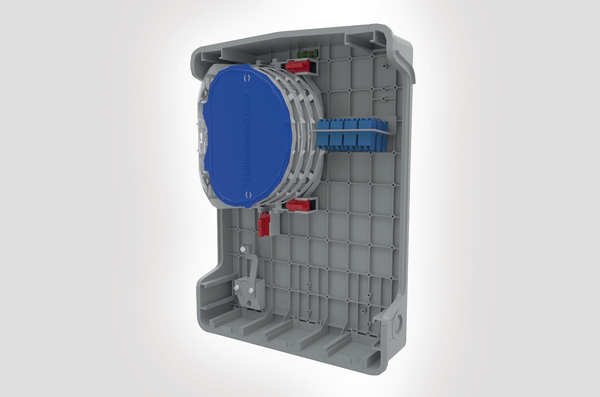

Technical Description The S3 enclosure is configured with the HellermannTyton 250µm IR Management System. The management system accommodates 4 SE-IR trays giving a maximum of 48 3A fibre splices and 3 1:4 bare end to LC PC PLC splitters. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. An LC Duplex adaptor connection plate is fitted with 12 LC PC duplex adaptors and 24 outputs from the 3 1:8 PLC splitter provide 24 customer connection points. The PLC splitter input is routed on to the fibre management trays to be spliced to the incoming fibre. The enclosure is 340 x 247 x 76mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 7 input/output ports, 3 across the bottom, 2 on the top and 1 on each side, each port will accommodate a 20mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
Type MDU-S3-XWX-CP12L31:8
Type of Tray Integrated Routing SE, 250µm
Variant Indoor/Outdoor FTTx Enclosures

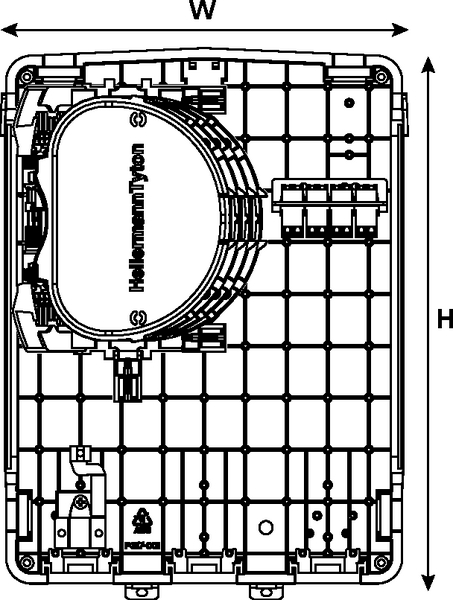

Depth (D) 76mm
Height (H) 340mm
Width (W) 247mm
