Heat Shrinkable Tubing 2:1 - PVC
Art.-No. 911-01346 | LVR127-PVC-WH Details

  • PVC heat shrinkable tubing
  • Self-extinguishing
  • Good chemical resistance and mechanical protection
Application LVR can be used for cable joints, low voltage busbars and batteries.
Colour White (WH)
Description HEATSHRINK LVR 12.7/6.4mm WHITE
Material Flexible Polyvinyl Chloride, cadmium free (PVC)
PART DESCRIPTION LVR127-PVC-WH
Pack Cont. 100m
Part No. LVR127TWT
Product Family LVR
Product Group Heat Shrinkable Tubing 2:1 - PVC
Shrink Ratio 2:1
Type LVR127
Longitudinal Change After Shrinkage +/-10% max

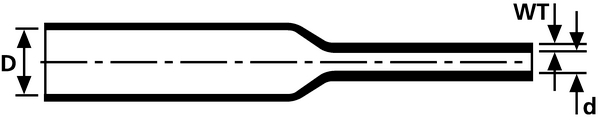

Recov. ∅ d max. 6.4mm
Supplied ∅ D min. 12.7mm
Wall (WT) 0.7mm
Dielectric Strength 15kV/mm
Dielectric Strength test method IEC 243
Flammability ASTM D2671
Min. Shrink Temperature - °C +120 °C
Operating Temperature -30 °C to +105 °C
Shelf Life 12 months
Specifications UL 224 105 °C 600V
GTIN-13 / EAN 6005242044540
Reel Length 100m
Storage Temperature +25 °C max.
