PST-HT - light weight
Art.-No. 342-11060 | PST-HT-25.4/12.7-POA-BK Details

This product is not available anymore.

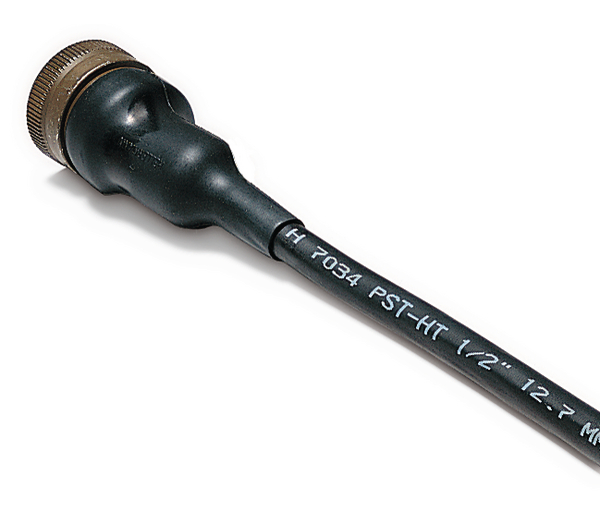

  • Light weight, thin-walled, very flexible tubing
  • Use when weight is a key factor
  • Resistant to diesel, aviation and hydraulic fluids
  • Suitable for aerospace applications like helicopters
  • VG approved shrink tubing
Show more
Application PST-HT is used for long-term protection of cables and wire harnesses in military equipment, motor sports, and aviation.
Application Tool H6100
Colour Black (BK)
Elongation At Heat Aging 350%
Heat Shock Tensile Strength 14
Material Elastomer, cross-linked (POA)
Pack Cont. 25m
Package Content packed in reel
PART DESCRIPTION PST-HT-25.4/12.7-POA-BK
Product Family PST-HT - light weight
Product Group Heat Shrinkable Tubing 2:1 - Elastomer
Shrink Ratio 2:1
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d max. 12.7mm
Supplied ∅ D min. 25.4mm
Wall (WT) 0.90mm
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 684 P2
Elongation at break 450%
Min. Shrink Temperature - °C +135 °C
Operating Temperature -75 °C to +150 °C
Self extinguishing Yes
Specifications
Specifications DEF STAN 59-97/3, NF F 00-608, VG 95343
Tensile Strength 17MPa
Reel Length 25.0m
UNSPSC Key 39121723
