Heat Shrinkable Tubing 3:1 Kit black
Art.-No. 380-03001 | ShrinKit 321 Basic-PO-X-BK Details

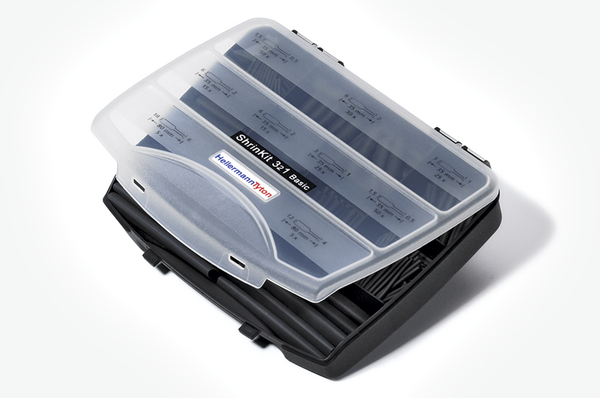

  • Compact and handy kit

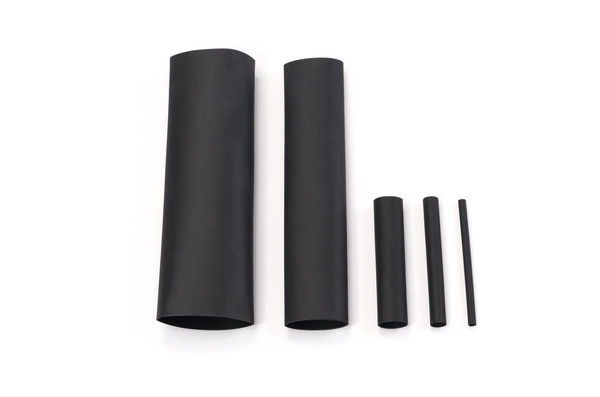

  • Black tubing
  • Available in a wide size range of 1.5 mm to 18.0 mm
  • 220 precut pieces in five sizes
Application The compact and handy kit belongs to the basic equipment for every assembler. Its ideal shrink ratio of 3:1 replaces many differently sized tubing.
Application Tool H6100
Colour Black (BK)

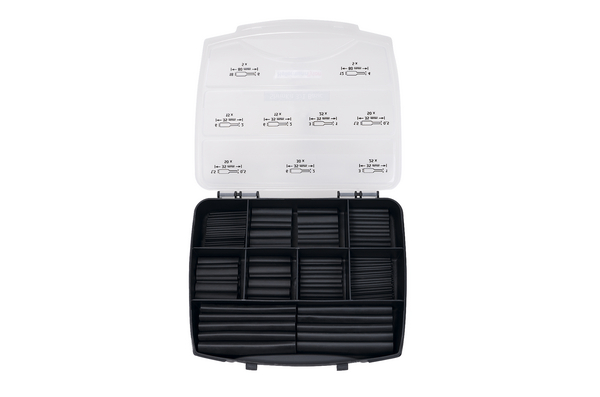

Content This kit contains a selection of widely used black tubing in five sizes and different lengths.
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION ShrinKit 321 Basic-PO-X-BK
Pack Cont. 1Set
Package Content packed in kit
Printable No
Product Family ShrinKit 321 Basic - 220 pcs. - black
Product Group Heat shrinkable tubing 3:1 in a kit
Shrink Ratio 3:1
Type ShrinKit 321 Basic
Variant Thin-Wall
With inner glue (Yes/No) No

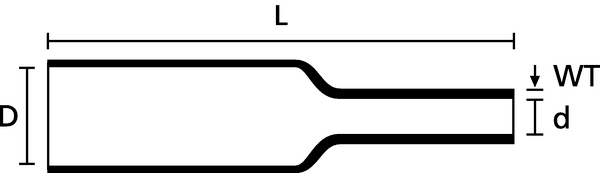

Longitudinal Change After Shrinkage +5%/-10% max.
CE Certification No
CSA Certified No
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Elongation at break 600%
Halogen-free No
Hazardous Goods No
Insulation Class B (VDE 0530)
Min. Shrink Temperature - °C +90 °C
Nato number 5970-12-401-6989
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026270692
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.192m
Packaging 1 - Qty 1
Packaging 1 - Type pack
Packaging 1 - Volume (m³) 0.00128
Packaging 1 - Weight (kg) 0.217kg
Packaging 1 - Width (m) 0.19m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 22
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0272
Packaging 3 - Weight (kg) 5.538kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 440
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 253.596kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121723
