Heat Shrinkable Tubing 3:1 Kit including different colours
Art.-No. 380-03002 | ShrinKit 321 Universal-PO-X-MIX Details

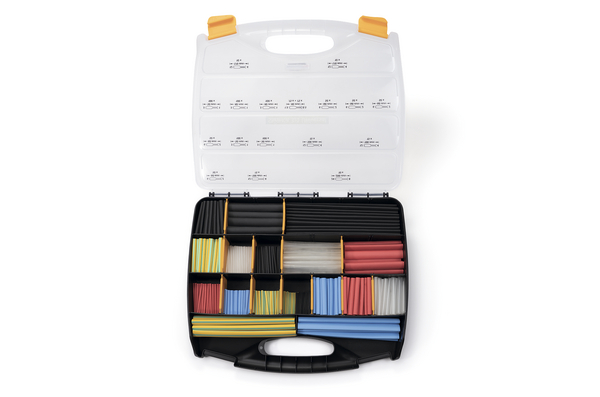

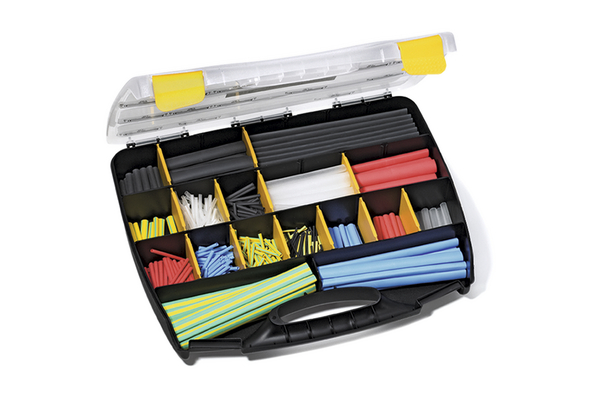

  • Attractive and reusable kit

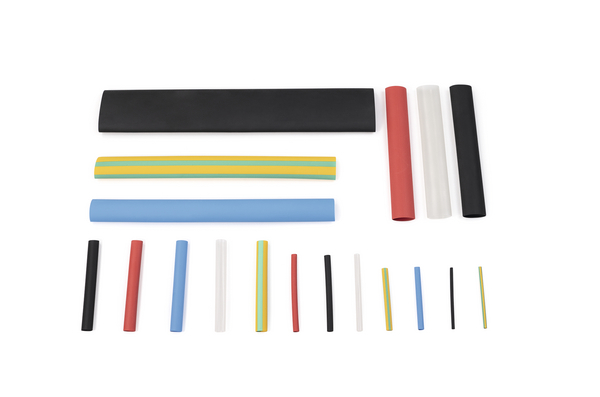

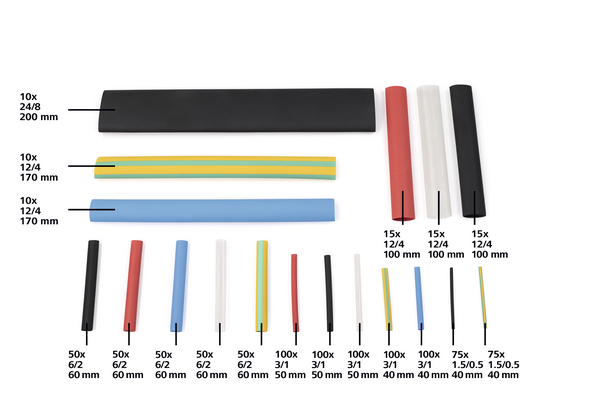

  • Wide range of sizes in 5 colours and various lengths
  • 975 precut pieces

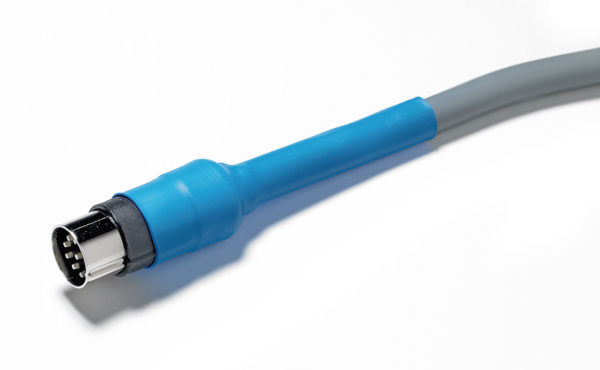

  • For insulation, bend protection and identification
  • Case can be re-used for storing nails, screws, nuts, fish hooks, etc.
  • Size of compartments changeable by simply moving yellow space dividers
Show more
Application With ShrinKit 321 HellermannTyton has set a new standard in heat shrink tubing: ShrinKit tubings cover many applications with their ideal shrink ratio of 3:1.
Colour Black (BK), Green-Yellow (GNYE), Transparent (CL), Red (RD), Blue (BU)
Content This kit contains a range of general purpose tubing lengths clearly sorted in various sizes and colours. Its ideal shrink ratio of 3:1 replaces many differently sized tubings. A diameter range from 1 mm to 20 mm can be covered with ShrinKit 321 Universal.
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION ShrinKit 321 Universal-PO-X-MIX
Pack Cont. 1Set
Package Content packed in kit
Printable No
Product Family ShrinKit 321 Universal - 975 pcs. - coloured
Product Group Heat shrinkable tubing 3:1 in a kit
Shrink Ratio 3:1
Type ShrinKit 321 Universal
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage +5%/-10% max.
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Insulation Class B (VDE 0530)
Min. Shrink Temperature - °C +90 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Self extinguishing No
Specifications
GTIN-13 / EAN 4031026270708
Packaging 1 - Height (m) 0.068m
Packaging 1 - Length (m) 0.384m
Packaging 1 - Qty 1
Packaging 1 - Type pack
Packaging 1 - Volume (m³) 0.00825
Packaging 1 - Weight (kg) 1.1kg
Packaging 1 - Width (m) 0.316m
Packaging 3 - Height (m) 0.34m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 6
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0544
Packaging 3 - Weight (kg) 7.1kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 0.824m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.791
Packaging 4 - Weight (kg) 92.0kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121723
