3000V DC
Art.-No. 911-01963
| LLI3000DC-YE
|
Details
This product is not available anymore.
- 5 minutes nominal operating time
- LED Visual indication
- Red flash alarm status at 2Hz
- Green flash safe status at 2Hz
- Buzzer audible indication 3.1kHz modulated at 2Hz, 70dBA at 1.5 metres
- 1 second response time
- Battery life alows for 250 operations minimum
More products in this product group:

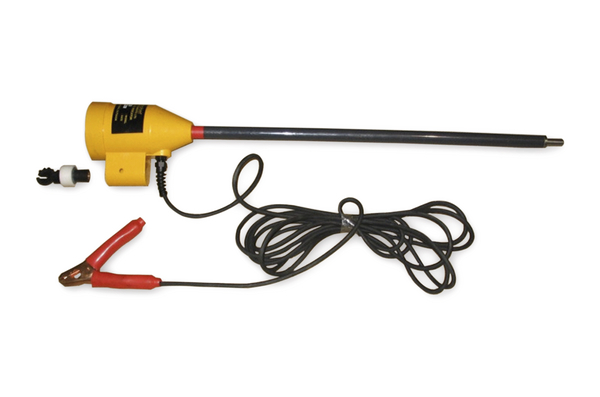

| Application | The LLI3000DC gives both visual (high intensity flashing red LED’s) and audible (70dB) alarm indication of a live conductor during testing. If the system voltage is above the threshold of 33%, the line is deemed energized. Pressing the test button will cause the alarms to activate. Releasing the button will replace the red LED’s with green ones and the audible alarm will stop. The LED's will remain green and active for about 5 minutes during which time the live line indicator can be applied to the line under test and if the threshold is exceeded the warning alarms will again be activated. A battery check can be performed by pressing the test button. |
| Colour | Yellow (YE) |
| Content Accessories | earth lead and clamp, rod adaptor, universal star-wheel adaptor, hook, Y and straight electrode, polymer cleaning kit, instruction manual, carry satchel |
| Description | Battery operated live line indicator designed to test DC systems |
| Pack Cont. | 1pc. |
| PART DESCRIPTION | LLI3000DC-YE |
| Product Family | 3000V DC |
| Product Group | High Voltage DC Indicator |
