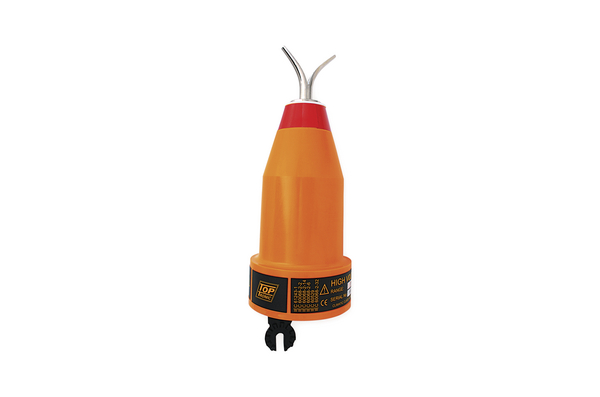

High Voltage Testers : T220HVD

Article number: 911-01896

Features

  • Contact Capacitive High Voltage Detector
  • Self starting and automatically activated when the High Voltage is applied to the contact electrode
  • Use on sinusoidal (50 or 60Hz) High Voltage Systems
  • Models are available to cover systems voltage from 6.6kV to 132kV
  • HV live or dead
  • All weather IP65

Certifications & Approvals

Colour Orange (OG)
PART DESCRIPTION T220HVD-OG
Product Group High Voltage Testers
Length (L) 180mm
Power Supply 1 x 9V Battery
Thickness (T) 100mm
GTIN-13 / EAN 6005243003218
Packaging 1 - Weight (kg) 0.6kg
