Multifunction instrument for IV curve measurements up to 1500V and 40A

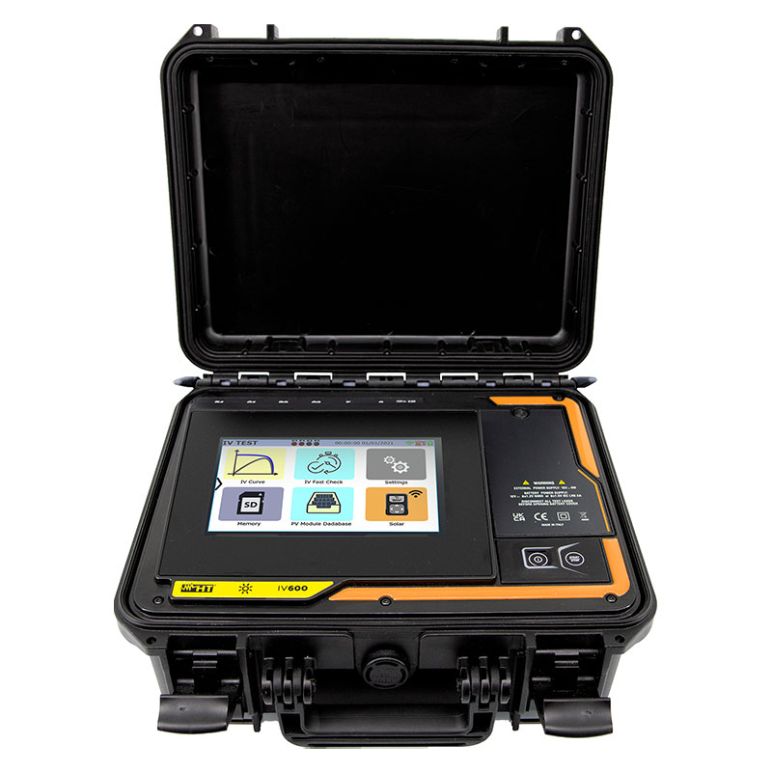

I-V curve tracer ideal for maintenance and troubleshooting of photovoltaic systems

The IV600 allows field tracing of I-V curve of modules and strings up to 1500V and 40A. Once traced the I-V curve, thanks to the user updatable database of modules, IV600 compares the measured data to the nominal values as provided by the manufacturer of the module/string under test.

IV600 traces the I-V curve of mono-facial and bi-facial modules.

Features and Benefits

  • I-V curve tracing of modules and strings up to 1500V and 40A
  • Measurement of open-circuit voltage and short-circuit current Voc/Isc
  • Database of PV module performance 40 000 Internal.
  • Battery Management System (BMS) to self-recharge the batteries while testing
  • Automatic acquisition of the cell calibration value (by using suitable cells)

Technical Data

Part Code : IV600
Cat III 15 - 1500V DC
Current 0.2A – 40A DC
Compatible to SOLAR03
Internal memory 9999 I-V curves
External memory microSD
PC interface with software for Windows and Mac
Integrated Wi-Fi for connection to smartphones and tablets
Auto power off
IP40 (open) / IP67 ( closed)
