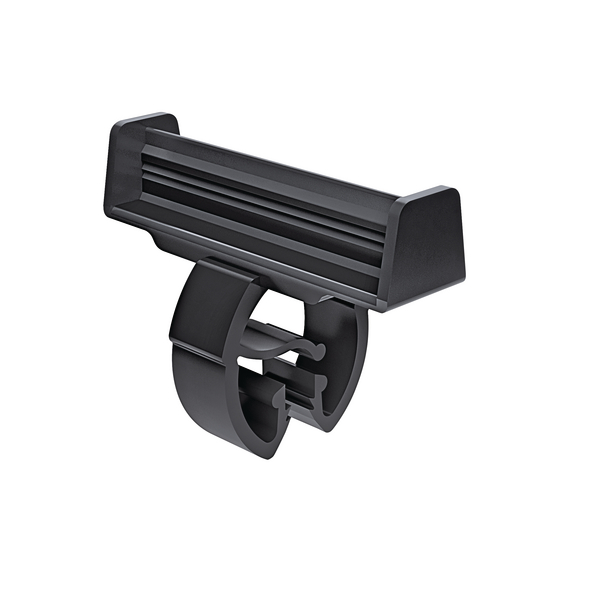

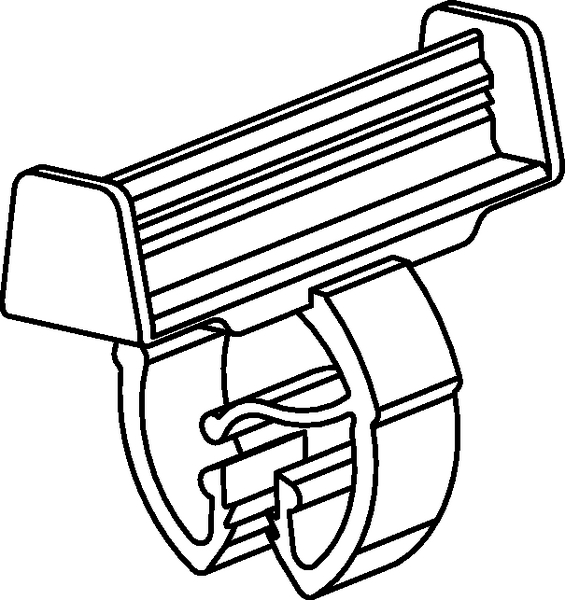

Accessory for WIC1, WIC2, WIC-Series, black, 100pcs. (WICA-AC10-25)
Art.-No. 561-06001 | WICA-AC10-25-PA66HIRHS-BK Details

  • Fast and easy to use pre-printed nylon snap-on marker
  • Ideal where termination is completed or for maintenance and repair
  • Markers lock together to give perfect text alignment
  • Vibration resistant markers, WIC markers lock onto wire and cable tightly
  • WIC tool holds 20 WIC markers in all four sizes
  • Gripping system locks markers onto wire and resists rotation
  • Available in yellow, white and international resistor colour code
  • Popular 2 digit markings such as L1, L2, L3, PE are available in yellow or colour code
  • Dispenser colour denotes marker size: WIC0 (green), WIC1 (red), WIC2 (blue), WIC3 (yellow)
  • Two accessories available to identify cables from 2.5 mm² to 95 mm² (WICA-AC10-25 and WICA-ACT-BK)
Show more

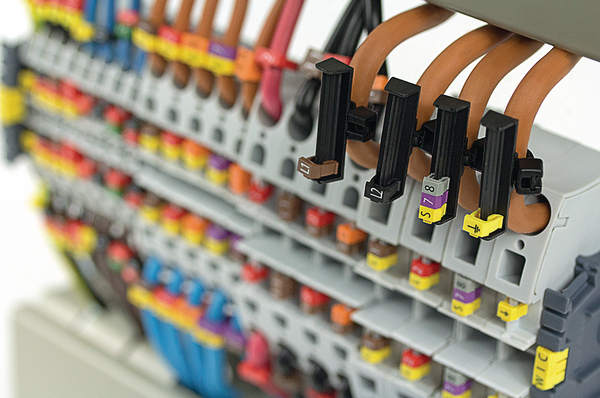

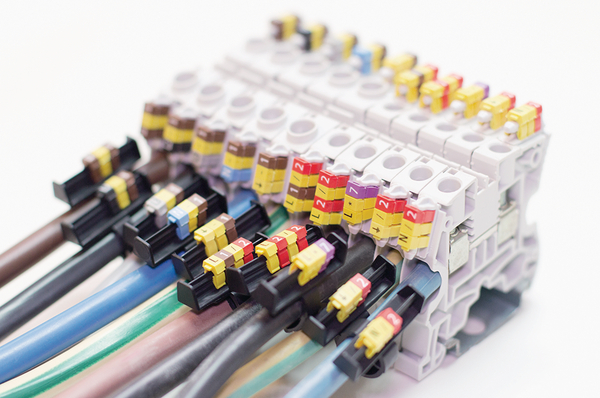

Application The WIC range of pre-printed cable markers easily snap onto cables and wires. The WIC tool ensures an easy application of the markers – simply insert the markers into the tool, slide down and press the markers onto the wire while twisting. Markers for fibre cables should be applied by hand. All markers come with a locking mechanism to ensure perfect text alignment. The two WICA accessories are ideal for marking cables of larger diameters (2.5 mm² - 95 mm²).
Colour Black (BK)
Description Snap-on accessory
Fixation Method snap-on
Marker tiles per carrier 8
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION WICA-AC10-25-PA66HIRHS-BK
Pack Cont. 100pcs.
Package Content packed in box
Product Family WIC, snap on
Product Group Pre-printed cable markers
Type WICA-AC10-25
Variant Other
With label space No
Bundle Diameter max (metric) 9.50mm
Bundle ∅ min. 5.50mm

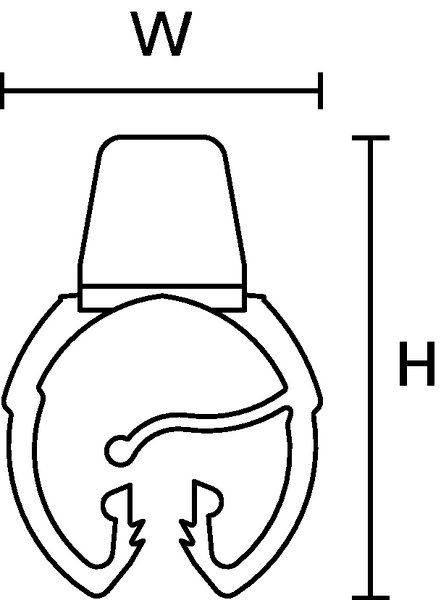

Height (H) 19.4mm

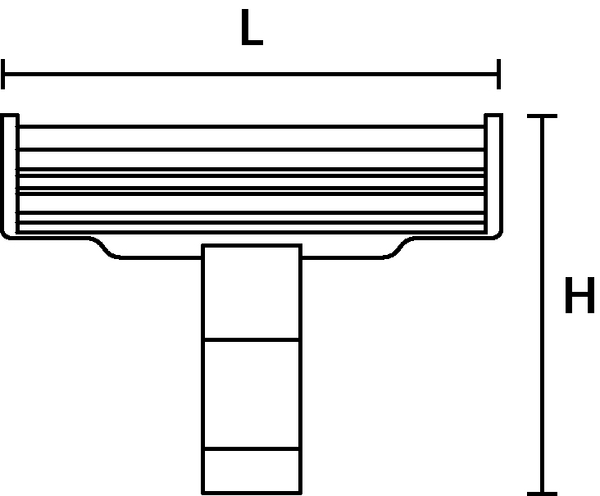

Length (L) 25.8mm
Print Method inkjet print
Width (W) 13.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications EN 60062, IEC 304
GTIN-13 / EAN 4031026568324
Packaging 1 - Height (m) 0.062m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 100
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.0006
Packaging 1 - Weight (kg) 0.096kg
Packaging 1 - Width (m) 0.052m
