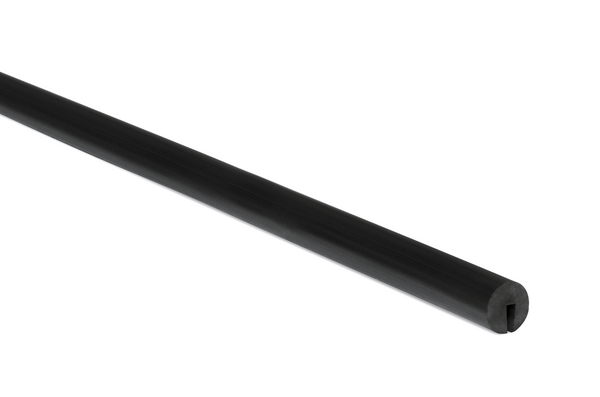

Edge protection PS1

EdgeGuard , Article number: 800-00200

Features

  • Very flexible
  • Easy to apply
  • Protects cables from chafing on bulkheads

Certifications & Approvals

Application

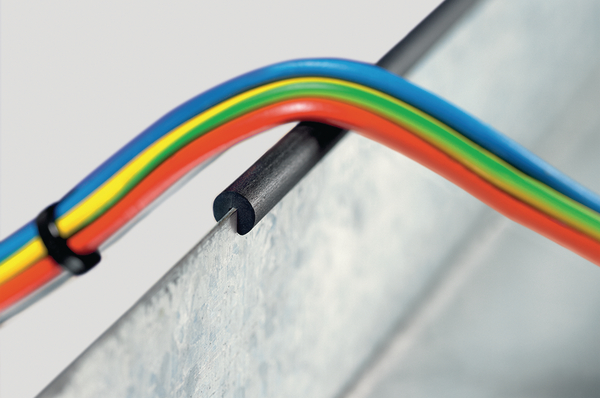

EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.

EdgeGuard is suitable for following markets and industries

  • Electronics Industry Electronics Industry
Colour Black (BK)
GLOBAL PART DESCRIPTION PS1-PVC-BK
Pack Cont. 75m
Package Quantity per reel
Part No. PS1BK
Product Family EdgeGuard
Product Group Edge protection
for Panel Thickness min - max 1 - 1.5 mm

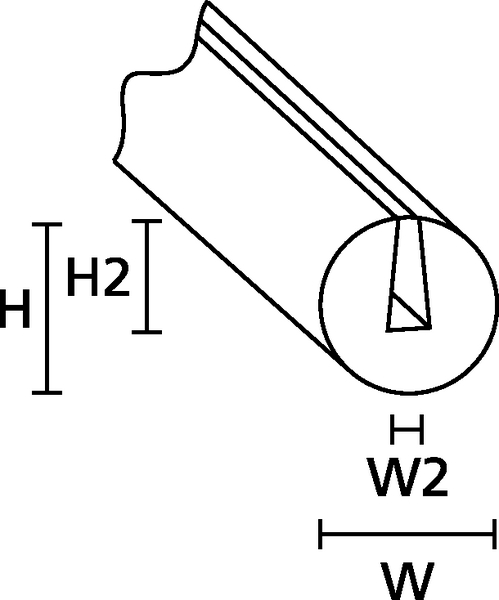

Height (H) 5.0mm
Height (H2) 3.15mm
Length (L) 75m
Width (W) 1.2mm
Width (W2) 0.6mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyvinylchloride (PVC)
Material PVC
Operating Temperature - °C -65 °C to +105 °C, intermittent +135 °C
Specifications
EAN / GTIN 4031026187211
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 75
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0045
Packaging 1 - Weight (kg) 2.325kg
Packaging 1 - Width (m) 0.3m
Reel Length 75m
Weight 2.325kg
