Photovoltaic Systems : PVCHECK

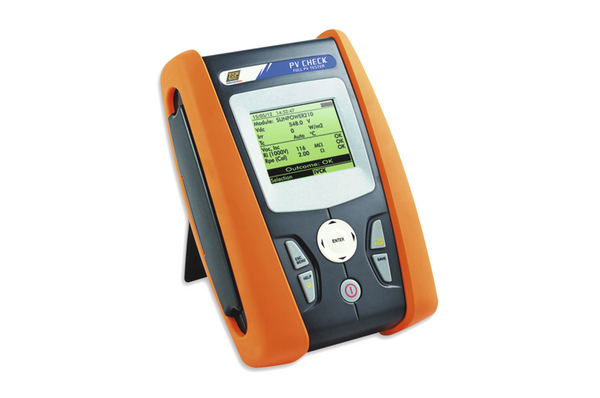

PVCHECK, Article number: 911-00190

Features

  • Safety test on PV installation
  • Continuity test on protective conductors with 200 mA
  • Insulation test with test voltage of 250, 500, 1000 VDC
  • DC efficiency of PV installation
  • DC voltage, DC current, DC Power
  • Solar irradiation [W/m2] with reference cell
  • Environmental and module temperature by means of PT1000 probe
  • SOLAR-02: remote unit for irradiance and temperature measurements
  • Recording of PV plant parameters (DC side) with programmable IP (5 seconds – 60 minutes)
  • Use of PDC compensation ratios according to environmental and module temperature
  • Use of relationship to maximise the DC efficiency
  • Outcome OK/NO

Application

The multifunction instrument PVCHECK allows prompt and safe electrical checks required for a PV system (section DC) as well as controls on working of modules / strings in accordance with IEC/EN62446 guidelines. PVCHECK verifies the continuity of the protective conductors (and the associated connections) and executes insulation resistance measurement of the active conductors on a module, a string or a photovoltaic field in accordance with the requirements of IEC/EN62446, without the need of short-circuiting the positive and negative terminals. PVCHECK allows verification of a PV string’s working in accordance with the requirements of IEC/EN62446 by measuring the open circuit voltage and short-circuit current under operating conditions and reporting the results to STC (by means of radiation measurement). It provides an immediate outcome for both absolute measurements and for measurements compared with the previously tested PV strings. PVCHECK also allows carrying out performance analysis of PV array (DC) under operating conditions (connected to the inverter) providing an indication of the power generated and the efficiency of the field as specified by IEC/EN62446.

PART DESCRIPTION PVCHECK
Part No. PVCHECK
Product Family PVCHECK
Product Group Photovoltaic Systems
EAN / GTIN 6005242991356
