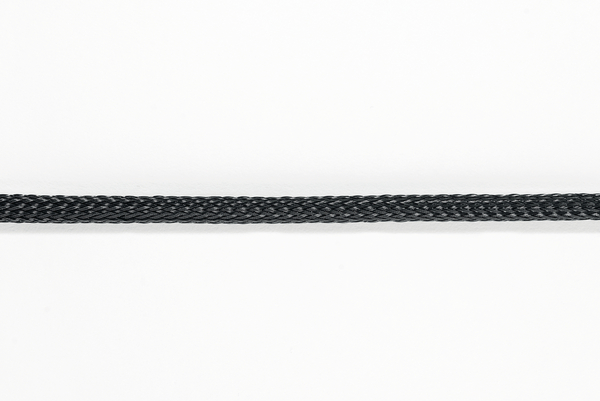

High expansion braided sleeving black Ø6 mm
Art.-No. 170-00060 | HEGPX06-PET-BK Details

  • Made of sturdy polyester
  • Highly flexible
  • High rate of expansion
  • Easy to apply over irregular shapes
  • Good abrasion resistance
Show more
Application Helagaine HEGPX is used whenever a higher expansion rate is required. HEGPX is particularly suitable for use in the automotive industry, panel building and in electrical appliances.
Application Tool HSG0
Colour Black (BK)
Key product features abrasion resistant (medium)
Material Polyester (PET)
Open, post termination (Yes/No) No
Pack Cont. 200m
Package Content packed in metre
PART DESCRIPTION HEGPX06-PET-BK
Part No. 17000060
Product Family Helagaine HEGPX
Product Group High-expansion polyester braided sleeving
Bundle Diameter max (metric) 9mm
Bundle ∅ min. 3mm
Length (L) 200m
Nominal ∅ 6mm
Nominal ∅ 0.13"
∅ D 0.24"
ELV compliant (Article 4 - 2) YES
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V2, FMVSS 302
Halogen-free Yes
Hazardous Goods No
Melting Point +250 °C
Operating Temperature -50 °C to +150 °C
Specifications
Specifications EN 45545-2
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E197993
GTIN-13 / EAN 4031026125473
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 200
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00958
Packaging 1 - Weight (kg) 1.51kg
Packaging 1 - Width (m) 0.37m
Packaging 3 - Height (m) 0.385m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 1000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0556
Packaging 3 - Weight (kg) 7.7kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.285m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 18000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.234
Packaging 4 - Weight (kg) 159.6kg
Packaging 4 - Width (m) 0.8m
Reel Length 200m
Reel Length 656.0ft
UNSPSC Key 39131602
