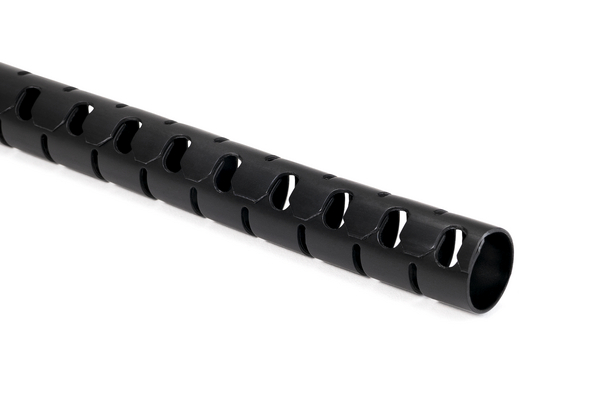

HWPP in polypropylene
Art.-No. 161-64208 | HWPP16-PP-BK Details

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often

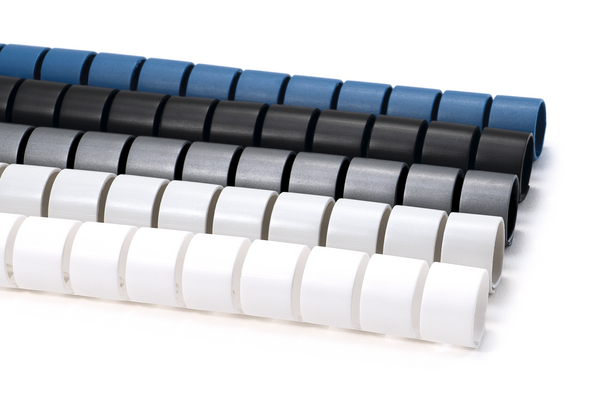

  • Available in several colours and sizes
  • Handy HAT applicator tool included
Show more

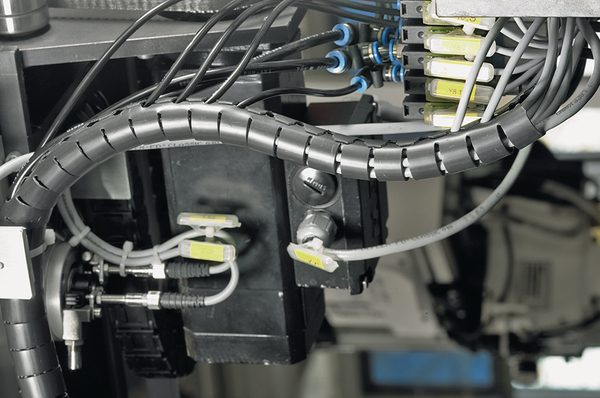

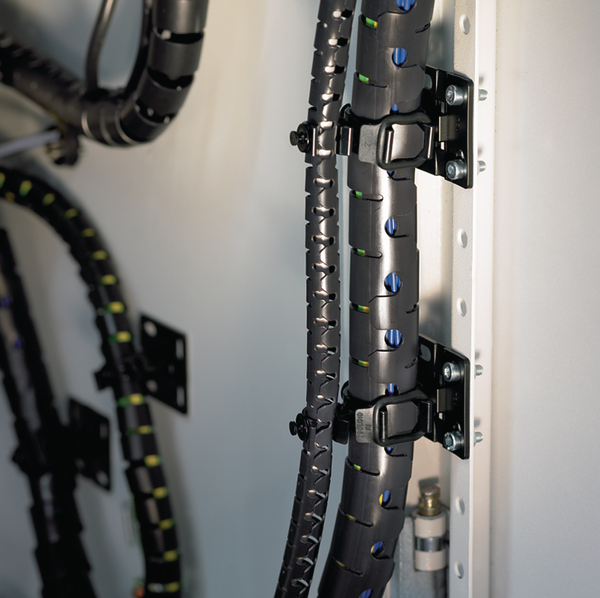

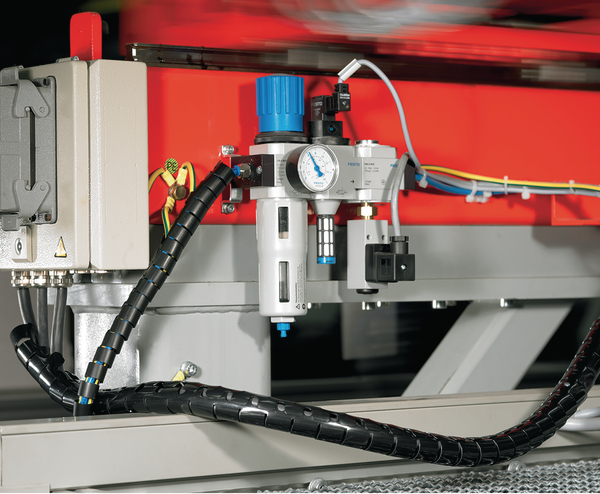

Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
Application Tool HAT16
Colour Black (BK)
Material Polypropylene (PP)
Package Content packed in box
PART DESCRIPTION HWPP16-PP-BK
Part No. HWP16B
Product Family HWPP in polypropylene
Product Group Helawrap cable cover
Variant Spiral Binding
Bundle Diameter max (metric) 16mm
Bundle ∅ min. 13mm
Diameter (D) 14.0mm
Nominal ∅ 16mm
Nominal ∅ 0.63"
Pitch (P) 13mm
Wall (WT) 0.8mm
Wall (WT) 0.03"
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Intermittent Operating Temperature +140°C
Melting Point +284 °F (+140 °C)
Operating Temperature -60 °C to +110 °C, intermittent +140 °C
Specifications
Specifications ECE R 118-03 Abschnitt 6
GTIN-13 / EAN 4031026292441
Packaging 1 - Height (m) 0.195m
Packaging 1 - Length (m) 0.49m
Packaging 1 - Qty 100
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.04682
Packaging 1 - Weight (kg) 3.3kg
Packaging 1 - Width (m) 0.49m
Packaging 2 - Type carton
Packaging 3 - Height (m) 0.72m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 1000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.6912
Packaging 3 - Weight (kg) 33.5kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 0.864m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.829
Packaging 4 - Weight (kg) 54.5kg
Packaging 4 - Width (m) 0.8m
Reel Length 1000m
UNSPSC Key 39131604
