ANT Splitter/Splice Protector Holders
Art.-No. 857-40427 | BRIDGE-SP/ANT |

Copied

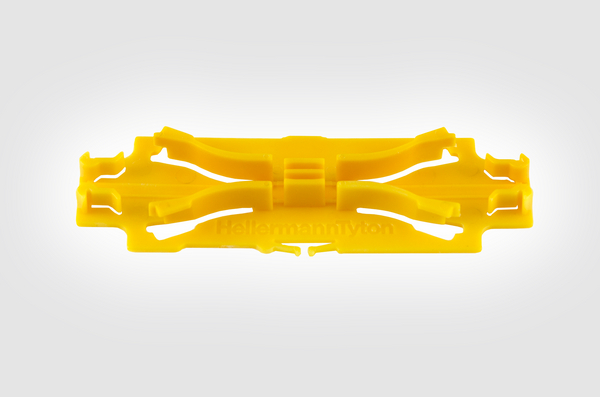

ANT Splitter Holder
ANT Splitter/Splice Protector Holder
ANT Splitter/Splice Protector Holder
ANT Splitter/Splice Protector Holder

    • Used to secure different types of splice protector within the splice tray
    • 9 options available for the most common applications
    • Optical splitter/3A or ANT option
    Downloads
    Colour Yellow (YE)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION BRIDGE-SP/ANT
    Package Content packed in bag
    Product Family Fibre Splice Tray Accessories
    Product Group ANT Splitter/Splice Protector Holders
    Technical Description The Splice Protector Holders (Splice Bridges) are colour coded for easy identification and allow for different types of splice protectors in the tray. Inserts are suitable for use with HellermannTyton Hellipse NZDF-SE-A/SE-B, IR-SE and Hellapon Medium (Style C)/Small and Hellamass Large trays. The optical splitter splice bridges will accept 2 x 60 x 7 x 4mm optical splitters plus 2 3A or ANT splices. All trays accept 2 splice protector holders excluding the Hellamass Large which accepts 12 inserts.
    Type BRIDGE-SP/ANT

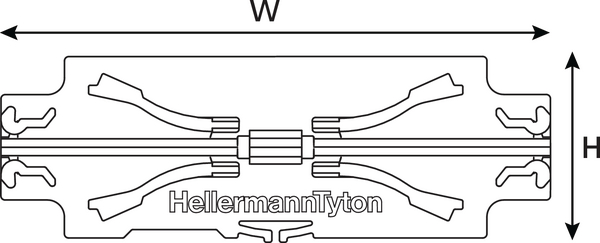

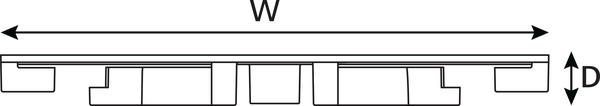

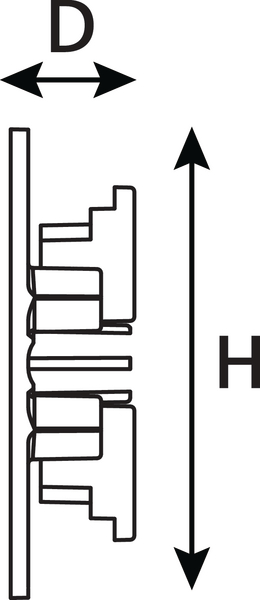

    Depth (D) 6mm
    Height (H) 22.5mm
    Width (W) 65mm
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660149030
    Packaging 1 - Height (m) 0.01m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.01kg
    Packaging 1 - Width (m) 0.02m
