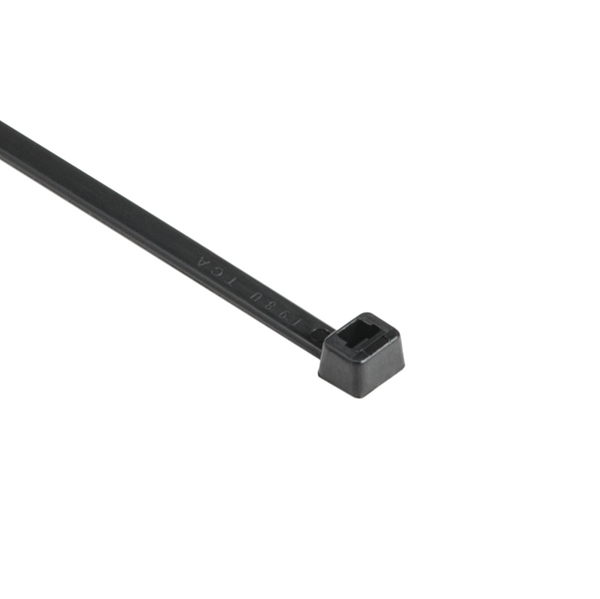

Cable tie inside serrated, 1095.0x8.9mm, ∅152.0-330.0mm, black, 25pcs.
Art.-No. 111-15500 | T150XL-PA66-BK Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more
e-Learning
Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, MK10-SB, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Identification Plate Position none
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T150XL-PA66-BK
Pack Cont. 25pcs.
Package Content packed in bag
Part No. T150XLBK
Product Family T-Series in PA66 black
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T150XL
Variant Inside Serrated
Bundle Diameter max (metric) 330.0mm
Bundle ∅ min. 152.0mm
Length (L) 1095.0mm
Min.Tensile Strength 780N
Thickness (T) 2.1mm
Width (W) 8.9mm
CE Certification Yes
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
GTIN-13 / EAN 4031026274874
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.8m
Packaging 1 - Qty 25
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0096
Packaging 1 - Weight (kg) 0.575001kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.1651m
Packaging 3 - Length (m) 1.17475m
Packaging 3 - Qty 500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0465
Packaging 3 - Weight (kg) 12.27kg
Packaging 3 - Width (m) 0.23971249999999998m
Packaging 4 - Height (m) 1.105m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 9000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.061
Packaging 4 - Weight (kg) 241.86kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
