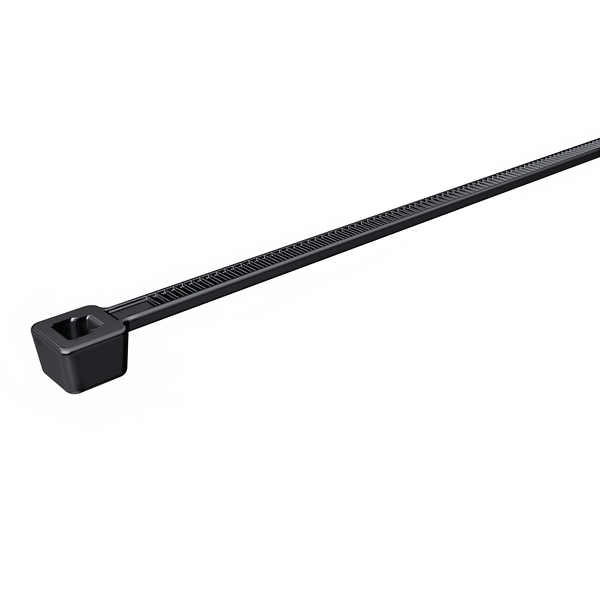

Cable tie inside serrated, 205.0x2.5mm, Ø1.5-50.0mm, black, 100pcs.
Art.-No. 111-02110 | T18L-PA66-BK Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more
e-Learning
Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour Black (BK)
Identification Plate Position none
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T18L-PA66-BK
Pack Cont. 100pcs.
Package Content packed in pcs.
Part No. T18LBK
Product Family T-Series in PA66 black
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18L
Variant Inside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ min. 1.5mm
Cable Tie Head Length (metric) 4.8mm
Cable Tie Head Width (metric) 4.5mm
Height (H) 3.9mm
Length (L) 205.0mm
Min.Tensile Strength 80N
Strap Width max. (G) 0.18"
Thickness (T) 1.2mm
Width (W) 2.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications ANSI/UL 62275, csa-C22.2 no. 62275
UL OCD link Link Link Link Link
UL Recognized (US and Canada) Yes
UL Type 11
UL-File Number E85319
GTIN-13 / EAN 4031026104409
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00063
Packaging 1 - Weight (kg) 0.0657kg
Packaging 1 - Width (m) 0.14m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 20000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 14.75kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 400000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 316.0kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
