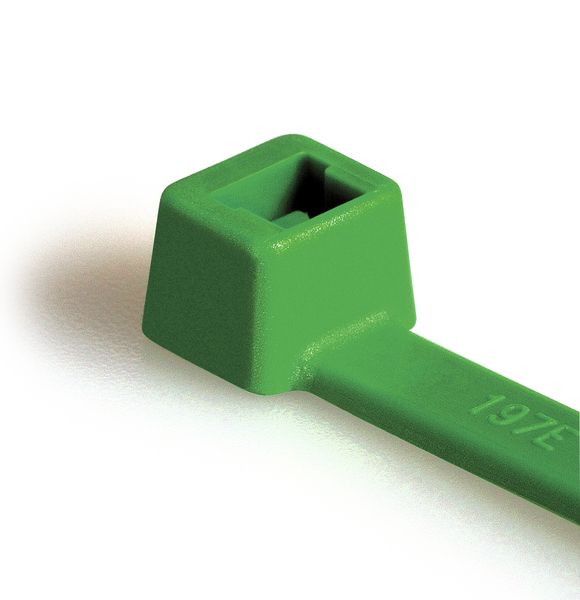

Cable tie inside serrated, 150x3.5mm, Ø1.5-35.0mm, green, 100pcs.
Art.-No. 111-02090 | T30R-PA66-GN Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more
e-Learning
Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour Green (GN)
Description CABLE TIES INSULOK 148 x 3.5mm GREEN
Identification Plate Position none
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T30R-PA66-GN
Pack Cont. 100pcs.
Package Content packed in bag
Part No. T30RGR
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T30R
Variant Inside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ min. 1.5mm
Length (L) 150mm
Min.Tensile Strength 135N
Thickness (T) 1.1mm
Width (W) 3.5mm
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 6005242036613
UNSPSC Key 39121703
