17/09/2021

Cable Ties for temperatures up to + 105°C (heat stabilised) : T50S

Cable Tie 150x4.6 mm HS-blackArticle number: 111-05850

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool

Certifications & Approvals

Application

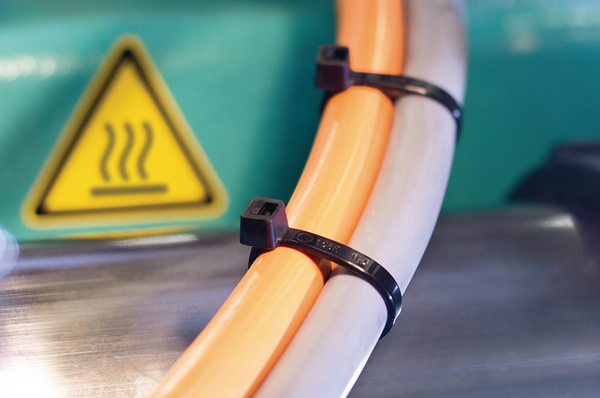

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Application Tool MK3PNSP2, EVOcut, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Black (BK)
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per pcs.
PART DESCRIPTION T50S-PA66HS-BK
Part No. T50SHSBK
Product Family T-Series in PA66HS black
Product Group Cable Ties for temperatures up to + 105°C (heat stabilised)
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 1.5mm
Length (L) 150.0mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Material PA66HS
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
Specifications CAN/CSA-C22.2 no. 62275, IEC 60092 series
UL OCD link Link
UL-File Number E64963
GTIN-13 / EAN 5022660326172
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00136
Packaging 1 - Weight (kg) 0.113901kg
Packaging 1 - Width (m) 0.155m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 8000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.91408kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 219.28kg
Packaging 4 - Width (m) 0.8m
