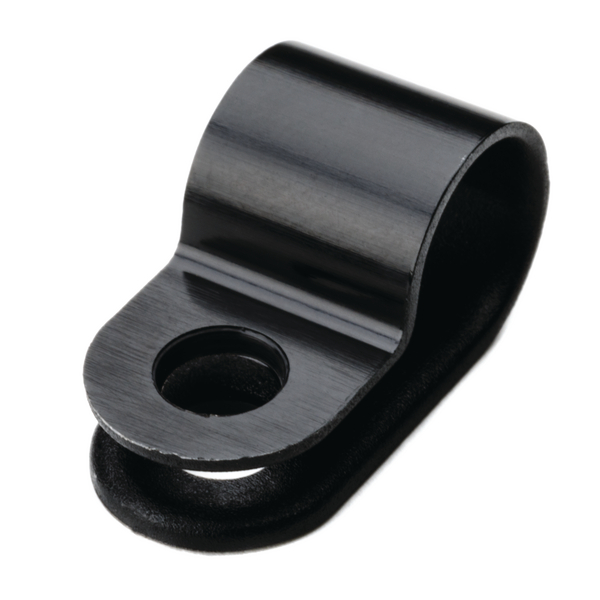

P-clamp closed, Ø4.2 mm, Dmax=8.0mm, black, 100pcs.
Art.-No. 211-60003 | H4P-PA66HS-BK Details

  • Manufactured from Polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties
Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Black (BK)
Fixation Method screw-hole
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION H4P-PA66HS-BK
Part No. NX3
Product Family HP-Series
Product Group Plastic P-Clamps
Variant Closed
Bundle Diameter max (metric) 8.0mm
Fixing Hole Centres (F) 10.0mm
Fixing Hole Centres (F) 0.39"
for Hole ∅ (FH) 4.2 mm
Nominal ∅ 8.0mm
Nominal ∅ 0.31"
Radius (R) 1.0mm
Radius (R) 0.04"
Wall (WT) 1.2mm
Wall (WT) 0.047"
Width (W) 10.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
UV-Stabilised No
GTIN-13 / EAN 4031026240824
Packaging 1 - Height (m) 0.01m
Packaging 1 - Length (m) 0.225m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00029
Packaging 1 - Weight (kg) 0.07607kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 3.6108kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 192000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 194.76kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
