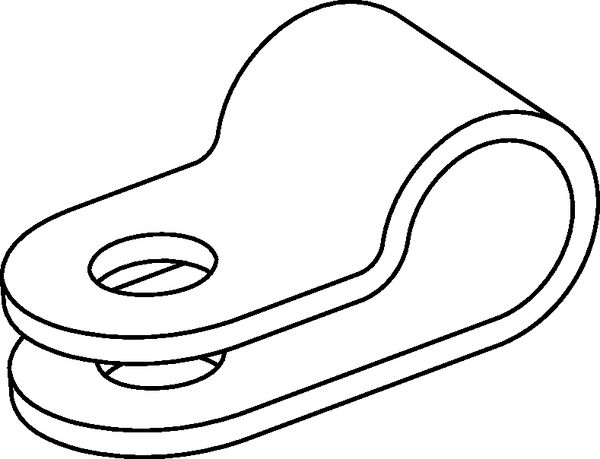

P-clamp closed, Ø4.2 mm, Dmax=8.0mm, natural, 1000pcs.
Art.-No. 211-60049 | H4P-PA66-NA Details

  • Manufactured from Polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties
Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Natural (NA)
Fixation Method screw-hole
Material Polyamide 6.6 (PA66)
PART DESCRIPTION H4P-PA66-NA
Pack Cont. 1000pcs.
Package Content packed in pcs.
Part No. NX3WT
Product Family HP-Series
Product Group Plastic P-Clamps
Type H4P
Variant Closed
Bundle Diameter max (metric) 8.0mm
Fixing Hole Centres (F) 0.39"
Fixing Hole Centres (F) 10.0mm
Nominal ∅ 0.31"
Nominal ∅ 8.0mm
Radius (R) 1.0mm
Wall (WT) 0.047"
Wall (WT) 1.2mm
Width (W) 10.0mm
for Hole ∅ (FH) 4.2 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V2
Hazardous Goods No
Nato number 5340-12-141-3252
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications EN 45545-2
UV-Stabilised No
GTIN-13 / EAN 4031026129402
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0027
Packaging 1 - Weight (kg) 0.573478kg
Packaging 1 - Width (m) 0.27m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 4.140868kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 288000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 219.624kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
