Ironmeter - TRMS AC/DC
Art.-No. 911-01988
| IRONMETER-MET/PL-BK/OG
Copied
- AC/DC voltage up to 600V
- Autorange
- Frequency
- Resistance and continuity test with
- Capacitance
- Measuring count: 4000
- Backlight
- Data HOLD, MAX/MIN
- Auto power off
More products in this product group:
| Application | used for checking components in industrial applications, test circuits for breaks. diode testing, ideal for construction and industrial use. |
| CAT-Rating | CATIII 600V |
| Colour | Orange (OG), Black (BK) |
| Content Accessories | Test Leads, Transport Bag and User Manual |

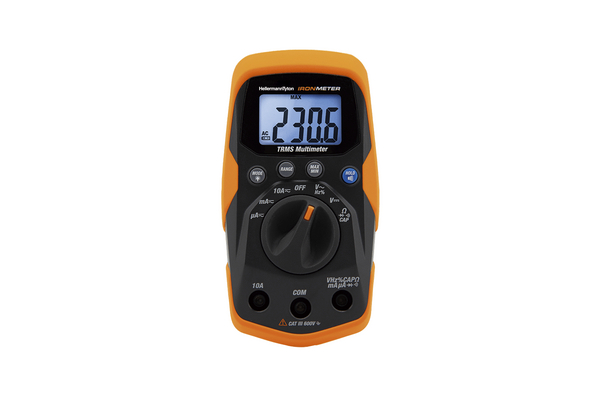

| Description | The IRONMETER is a tough construction site tester made to withstand shocks of all kinds and continue to operate with the same level of accuracy and reliability. The meter comes with an integrated LED flashlight to illuminate in spaces with poor lighting. |
| Digits in display | 4 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | IRONMETER-MET/PL-BK/OG |
| Package Content packed in | box |
| Part No. | IRONMETER |
| Power Supply | 2 x 1.5V AAA Batteries |
| Product Family | Instruments, Digital multimeters |
| Product Group | Ironmeter |
| Type | IRONMETER |
| AC Current (+Accuracy) | 400µA/ 4000µA/ 40mA/ 4/ 10A (±1.2% + 3 Digit |
| AC Voltage (+Accuracy) | 4/ 40/ 400/ 600V (±1.0% + 3 Digit) |
| Capacitance (+Accuracy) | 40nF/ 400nF (±4.5% + 10 Digit), 4µF/ 40µF (±3.0% + 5 Digit), 400µF/ 4000µF (±5.0% + 5 Digit) |
| DC Current (+Accuracy) | 400µF/ 4000µF/ 40mA/ 400mA/ 4/ 10A (±1.2% + 3 Digit) |
| DC Voltage (+Accuracy) | 400mV/ 4/ 4/ 40/ 600V (±1.0% + 3 Digit) |
| Frequency (+Accuracy) | 10Hz - 10kHz (±1.2%) |
| Resistance (+Accuracy) | 400/ 4kΩ/ 40kΩ/ 400kΩ/ 4mΩ/ 40mΩ (±1.5% + 5 Digit) |
Feature
[AC Current (A)]
Parameter
[400 μA/ 4000/ 40mA/ 400/ 4/ 10 A]
Accuracy
[±1.2% +3 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[4/ 40/ 400/ 600 V]
Accuracy
[±1.0% +3 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[40/ 400 nF, 4/ 40 µF, 400/ 4000 µF]
Accuracy
[±4.5 % +10 Digit(s), ±3.0 % +5 Digit(s), ±3.0 % +5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[400 μA/ 4000/ 40 mA/ 400/ 4/ 10 A]
Accuracy
[±1.2% +3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[400 mV/ 4/ 40/ 600 V]
Accuracy
[±1.0% +3 Digit(s)]
Feature
[Display]
Parameter
[4 Digit(s)]
Accuracy
[4000 Counts]
Feature
[Frequency (Hz)]
Parameter
[10 Hz – 10 kHz]
Accuracy
[±1.2%]
Feature
[Resistance (Ω)]
Parameter
[400 Ω/ 4/ 40/ 400 kΩ/ 4/ 40 MΩ]
Accuracy
[±1.5% +5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
400 μA/ 4000/ 40mA/ 400/ 4/ 10 A |
±1.2% +3 Digit(s) |
|
AC Voltage (V) |
4/ 40/ 400/ 600 V |
±1.0% +3 Digit(s) |
|
Capacitance (F) |
40/ 400 nF 4/ 40 µF 400/ 4000 µF |
±4.5 % +10 Digit(s) ±3.0 % +5 Digit(s) ±3.0 % +5 Digit(s) |
|
DC Current (A) |
400 μA/ 4000/ 40 mA/ 400/ 4/ 10 A |
±1.2% +3 Digit(s) |
|
DC Voltage (V) |
400 mV/ 4/ 40/ 600 V |
±1.0% +3 Digit(s) |
|
Display |
4 Digit(s) |
4000 Counts |
|
Frequency (Hz) |
10 Hz – 10 kHz |
±1.2% |
|
Resistance (Ω) |
400 Ω/ 4/ 40/ 400 kΩ/ 4/ 40 MΩ |
±1.5% +5 Digit(s) |
