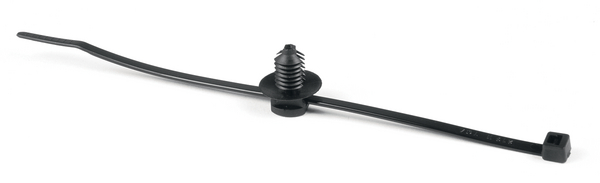

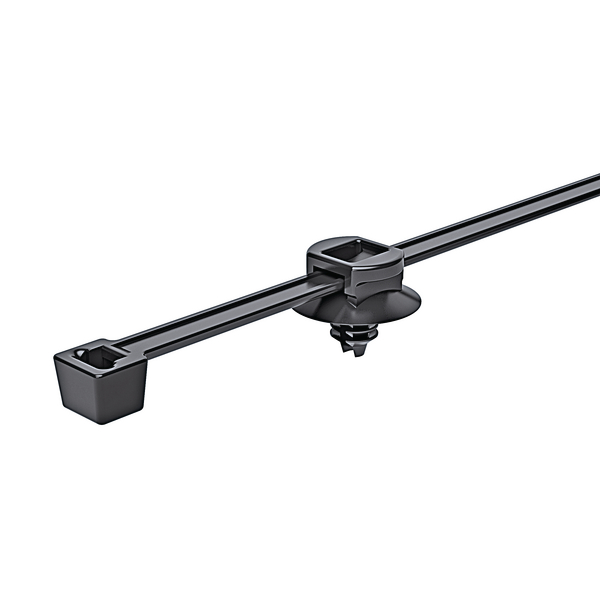

Fixing tie for hole (round), inside serrated, Ø4.0-45.0mm, black, 500pcs.
Art.-No. 156-00025 | T50RFT5-PA66HS/PA66HIRHS-BK Details

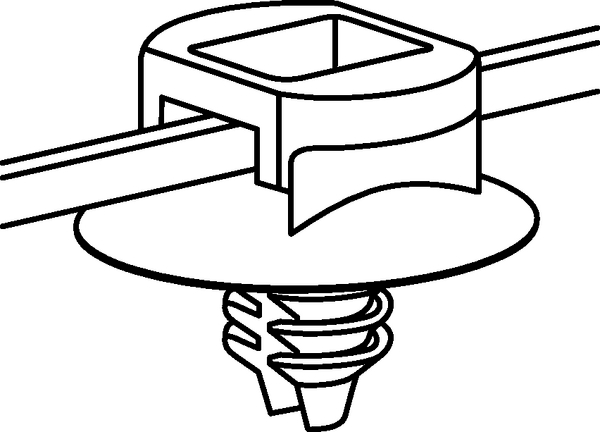

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more
Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)

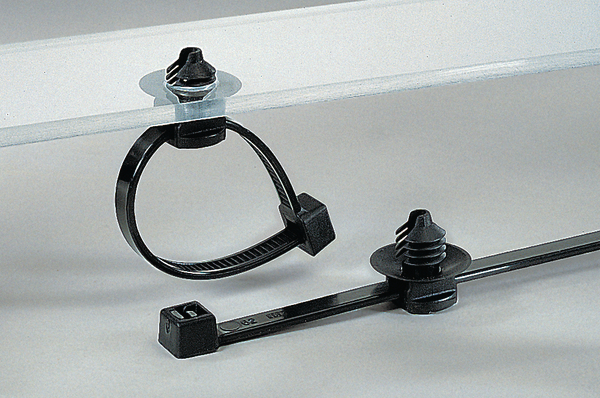

Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir tree for round holes
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
No. of sides for tie attachment 2
Pack Cont. 500pcs.
Package Content packed in bag
PART DESCRIPTION T50RFT5-PA66HS/PA66HIRHS-BK
Part No. T50RFT5HB
Product Family Fir tree parts FT5
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
Disc ∅ 0.63"
for Hole ∅ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.7 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H) 1.2mm
Height (H2) 6.9mm

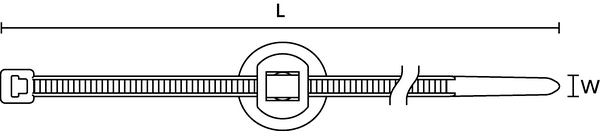

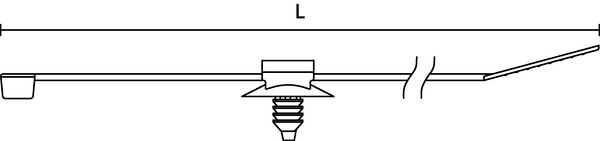

Length (L) 200.0mm
Length (L2) 11.6mm
Length (L3) 13.2mm
Length of Fir Tree 6.9mm
Min.Tensile Strength 222N
Panel Thickness 0.03 - 0.12"
Panel Thickness max. 0.7 - 3.0mm
Panel Thickness max. (imperial) 0.12"
Panel Thickness min. (imperial) 0.03"
Width (W) 4.6mm
Width (W2) 0.35"
Width (W3) 5.0mm
Width (W3) 0.2"
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +110 °C
Specifications
UV-Stabilised (Yes/No) No
GTIN-13 / EAN 4031026251806
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.365m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00934
Packaging 1 - Weight (kg) 0.927135kg
Packaging 1 - Width (m) 0.32m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.65308kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 124.824kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
