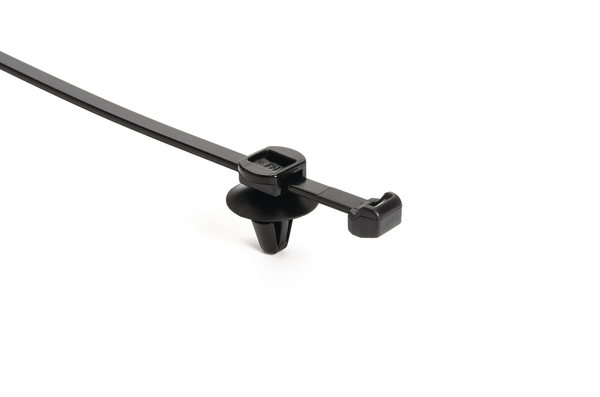

Fixing tie for hole (round), outside serrated, ⌀5.0-45.0mm, black, 500pcs.
Art.-No. 150-37791
| T50ROSSFT6.5-16-3-PA66HS/PA66HIRHS-BK
|
Copied

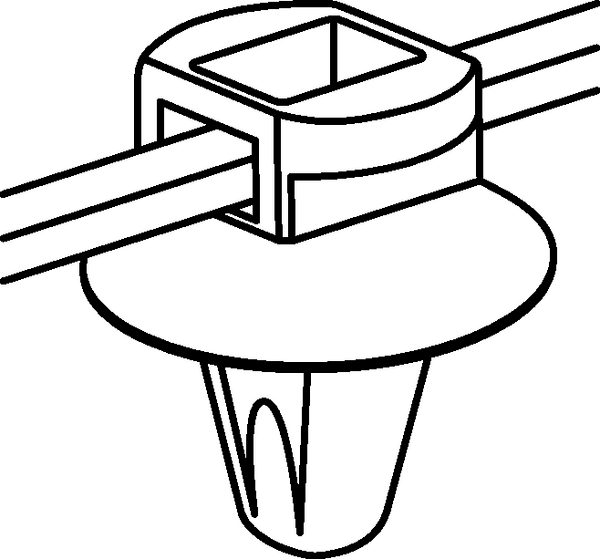

- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50ROSSFT6.5-16-3-PA66HS/PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | pack |
| Part No. | 150-37791 |

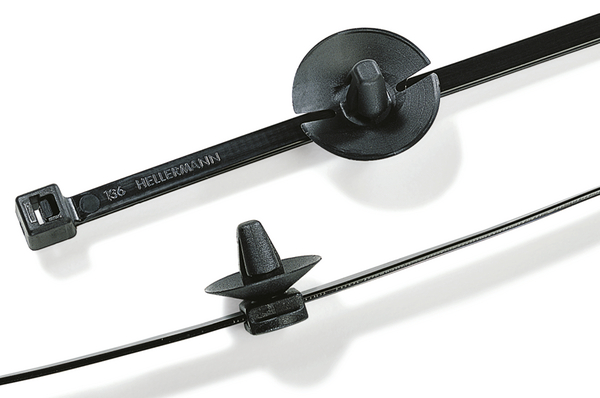

| Product Family | 2-Piece Fixing Ties with Arrowhead, with Disc, for round holes |
| Product Group | 2-piece fixing ties with arrowhead, with disc |
| Tie Closure | plastic pawl |

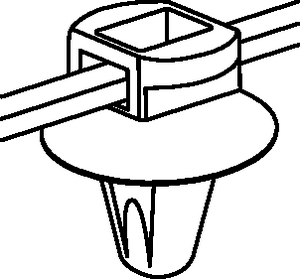

| Type | T50ROSSFT6.5-16-3 |
| UV-Stabilised | No |
| Variant | Outside Serrated |
| Bundle ⌀ max. | 45.0mm |
| Bundle ⌀ min. | 5.0mm |
| Disc ⌀ | 0.63" |
| Disc ⌀ | 16.0mm |
| Height (H) | 1.3mm |
| Height (H2) | 10mm |

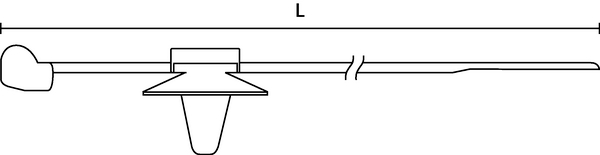

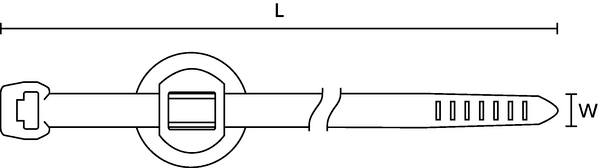

| Length (L) | 200mm |
| Length (L2) | 11.6mm |
| Panel Thickness | 0.10 - 0.14" |
| Panel Thickness | 2.5 - 3.5mm |
| Panel Thickness max. (imperial) | 0.14" |
| Panel Thickness min. (imperial) | 0.10" |
| Width (W) | 4.6mm |
| Width (W2) | 0.35" |
| Width (W2) | 9.0mm |
| for Hole ⌀ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 2.5 - 3.5 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature Foot Part (Metric) | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| GTIN-13 / EAN | 4031026195094 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 0.957135kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 8.65308kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 124.824kg |
| Packaging 4 - Width (m) | 0.8m |
