28/03/2024

Identification tags for cable bundle in ladder style TAGLF 51x20 mm white 1000 pcs./reel
Art.-No. 556-83002 | TAGLF20X51-4WH-PO-X-WH Details

This product is not available anymore.
  • Limited fire hazard cable marker
  • Halogen free
  • For larger cables and wires, bundles
  • Thermal transfer or laser beam printable
  • Good mechanical strength and highly flexible
  • Delivered on reel in convenient storage boxes
Show more
e-Learning

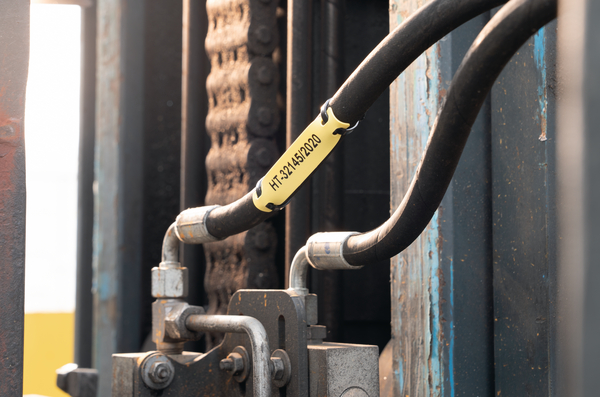

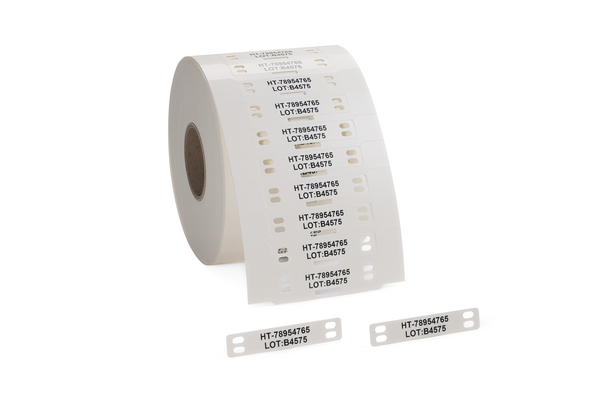

Application TAGLF is a halogen free cable marker for mass transit applications specifically in the railway industry or for all areas where limited fire hazard material is needed. TAGLF’s material properties show low smoke propagation, density and toxicity. They are supplied pre-cut and have been formatted into a convenient "ladder" system. Simply print and press out the required TAGLF and apply with cable ties, they are also suitable for retrofit purposes. Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device.
Application Tool TT431, TT4030
Colour White (WH)
Fixation Method Others
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1000pcs.
Package Content packed in pack
PART DESCRIPTION TAGLF20X51-4WH-PO-X-WH
Part No. 55683002
Printable Yes
Product Family TAGLF – Rail - Limited Fire Hazard Tiptags
Product Group Identification tags for cable bundle "Ladder Style", thermal transfer
Variant Roller form
With label space Yes
H printable 20.4mm

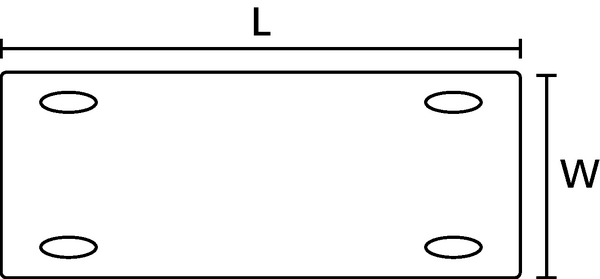

Length (L) 51.5mm
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Strap Width max. (G) 4.6mm
Strap Width max. (G) 0.18"
Width (W) 20.4mm
Width of Liner (WL) 70.0mm
Width of printable area (metric) 32.7mm
ELV compliant (Article 4 - 2) YES
EN 45545-2 Results R22 HL3, R23 HL3
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Oxygen index 32.7%
Recommended Ribbon Type TTDTHOUT
Reel Variant ladder-style
Specifications
Specifications EN 45545-2, MIL-STD-202G Method 215K, SAE - AS81531
GTIN-13 / EAN 4031026477312
Markers per row 1
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.175m
Packaging 1 - Qty 1000
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00306
Packaging 1 - Weight (kg) 2.9kg
Packaging 1 - Width (m) 0.175m
UNSPSC Key 39131504
