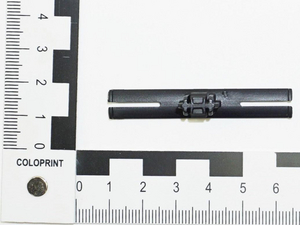

Bundling Clips with Fir Tree, for Oval Holes : TCOP62x122

Bundling Clip, oval hole 6.2 x 12.2 mm, fir tree, high impact modified, heat stabilised, blackArticle number: 151-00605

Features

  • Especially for banding of cables and cable harnesses
  • Fastened onto bundling bar with cable ties or adhesive tape
  • Various base geometries for wide variety of metal gauges and bore diameters

Certifications & Approvals

Application

Originally designed for the automotive industry, these clips offer simple and easy methods of securing cables, hoses or pipes. These parts are used in the automotive industry for assembly of cable harnesses.

Colour Black (BK)
Fixation Method Fir Tree for oval holes
Pack Cont. 7000pcs.
Package Quantity per bag
PART DESCRIPTION TCOP62x122-PA66HIRHS-BK
Part No. TCOP62BK
Product Group Bundling Clips with Fir Tree, for Oval Holes
Bundling Bar Length 55.0mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.6 - 6 mm
Length (L) 55.0mm
Panel Thickness max. 0.6 - 6.0mm
Panel Thickness max. (imperial) 0.24"
Panel Thickness min. (imperial) 0.02"
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material PA66HIRHS
Operating Temperature - °C -40 °C to +105 °C
Specifications
GTIN-13 / EAN 4031026286570
Packaging 1 - Height (m) 0.8m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 7000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.192
Packaging 1 - Weight (kg) 8.164411kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 7000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 8.814411kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 140000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 197.28kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 26121630
