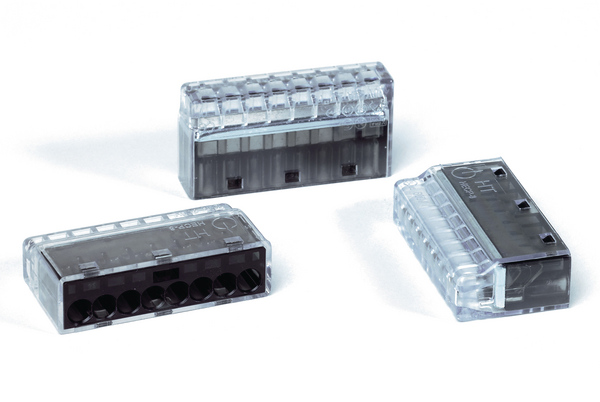

Connectors HECP-8

HelaCon Plus, Article number: 911-01814

Features

  • Sophisticated push-in wire connector
  • For professional cable connections in electrical housing

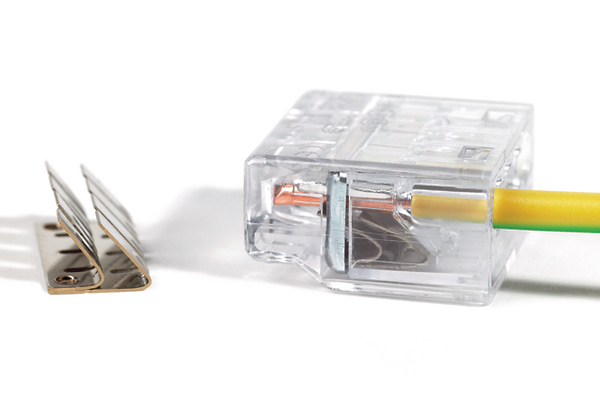

  • Double spring for easy processing
  • Supports installers in difficult situations like overhead work

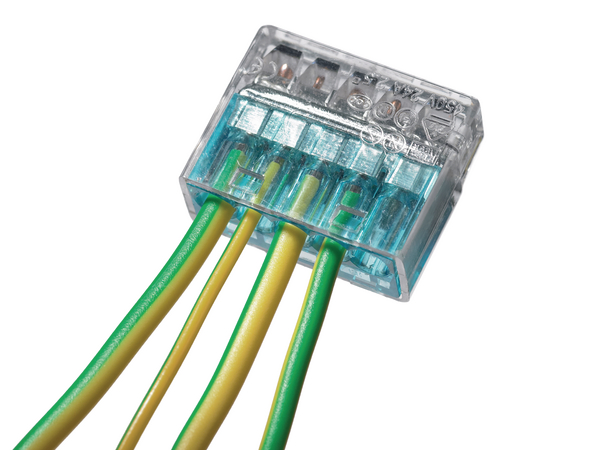

  • For proper fixing that can be visually checked through transparent housing
  • Different colour codes for comfortable identification

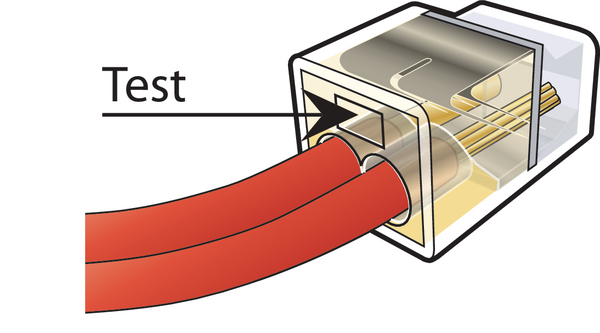

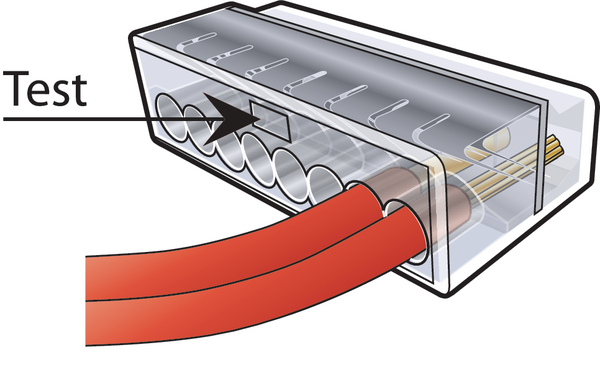

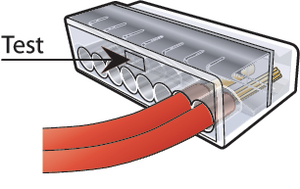

  • Separate voltage test entry on front
  • Safe application, installation and maintenance

Certifications & Approvals

Application

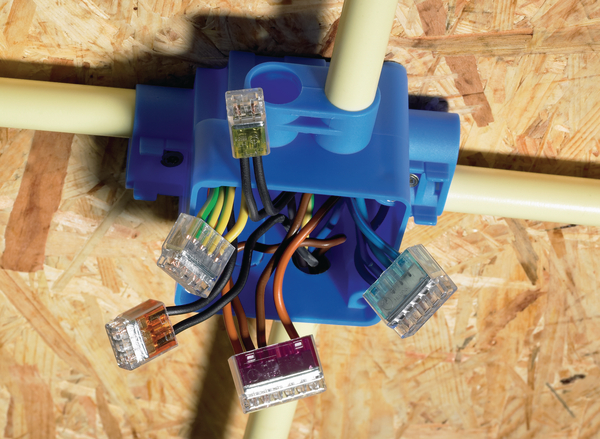

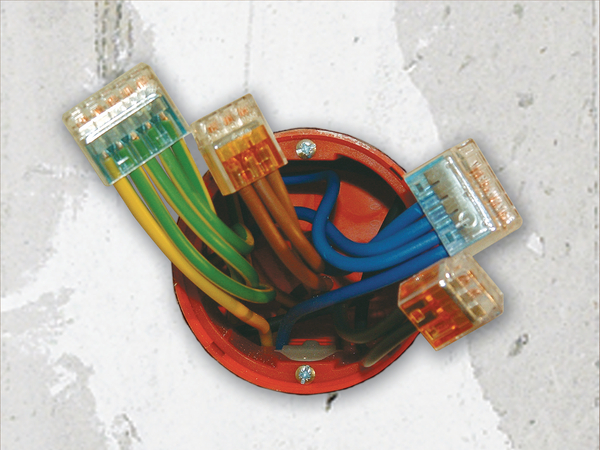

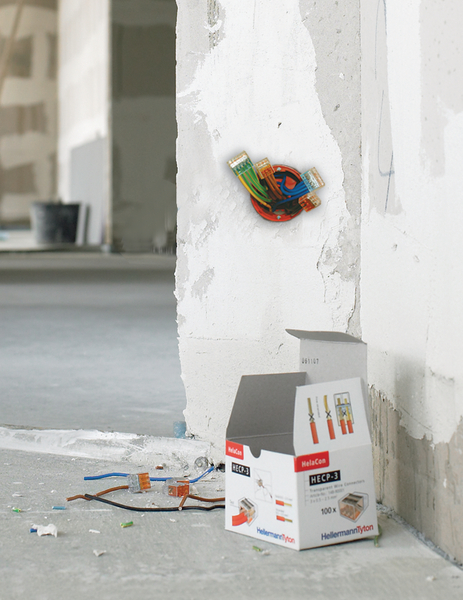

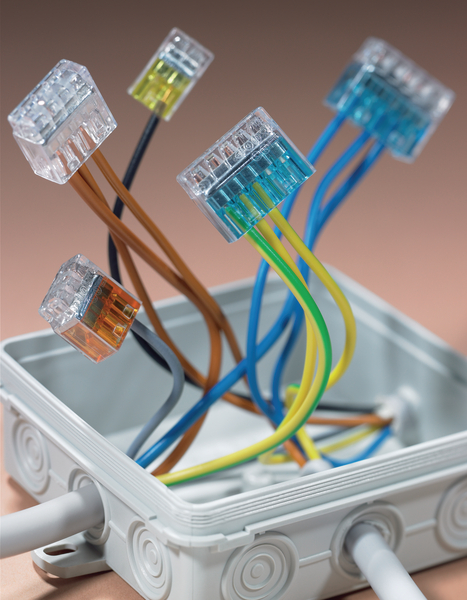

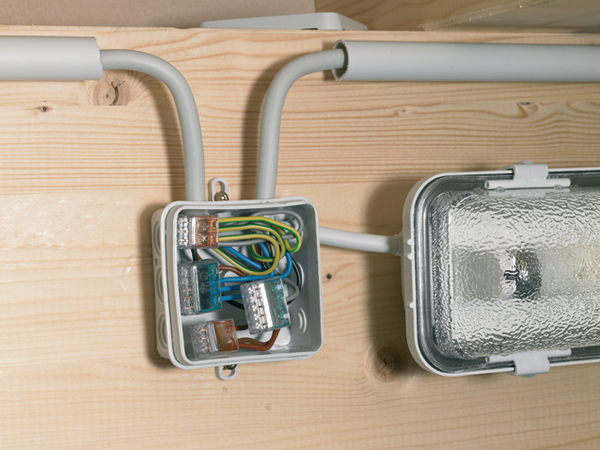

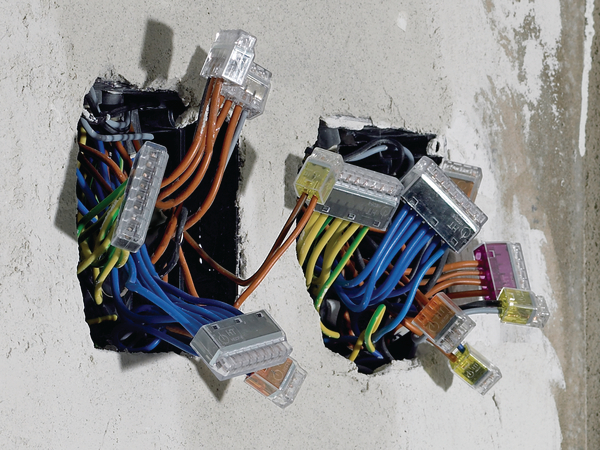

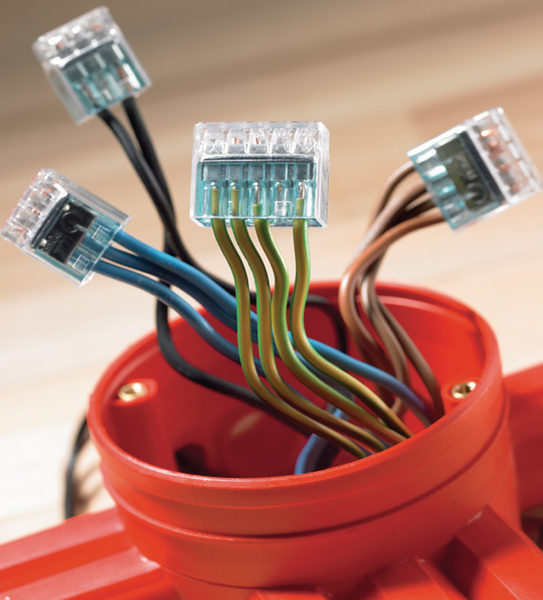

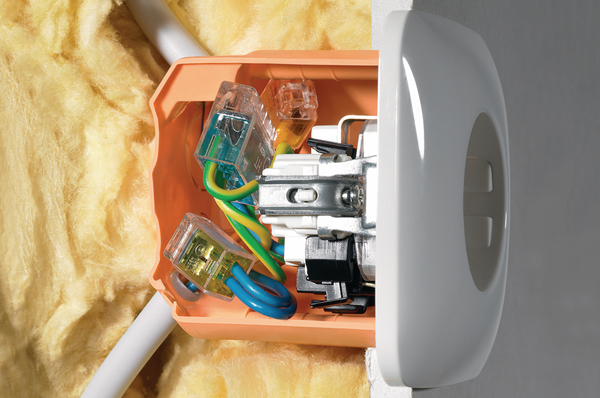

The HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in the field of electrical housing applications. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon Plus offers the best possible solution when convenient processing and maximum safety is required.

Colour Transparent (CL), Grey (GY)
Description HELACON CONNECTOR PC358 GREY
Number of Conductors 8
Pack Cont. 50pcs.
Package Quantity per bag
PART DESCRIPTION HECP-8-PC-CL/GY
Part No. HECP8
Product Family HelaCon Plus
Product Group Connectors
Depth (D) 19.0mm
Height (H) 10.45mm
Max Current 24A
Max Voltage 450V

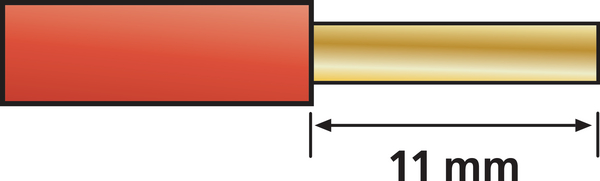

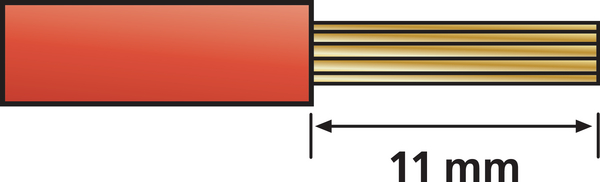

Stripping Length 11mm
Width (W) 36.7mm
Wire Range (cULus) AWG 12 to 22 solid/stranded
Flammability UL 94 V0
Halogenfree Yes
Material Polycarbonate (PC)
Material PC
Operating Temperature - °C -30 °C to +105 °C (cULus), -30 °C to +110 °C (VDE)
Specifications
Specifications cULus, DEMKO, DIN EN 60998-2-2:2005-03, EN 60998-2-2:1993, FIMKO, NEMKO, SEMKO
EAN / GTIN 6005242075957
