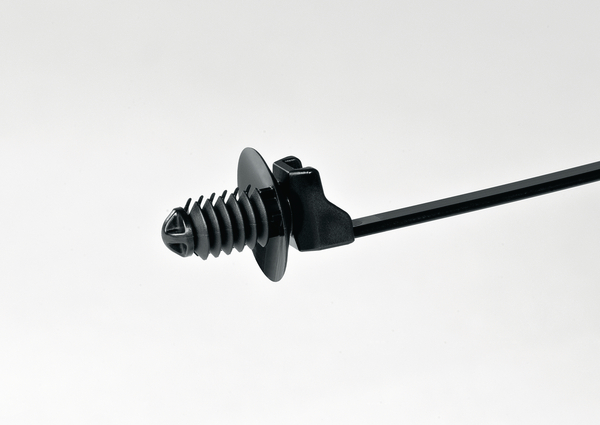

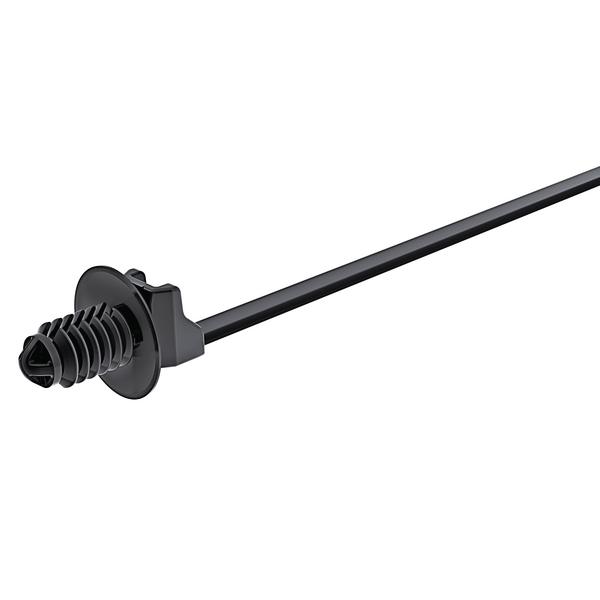

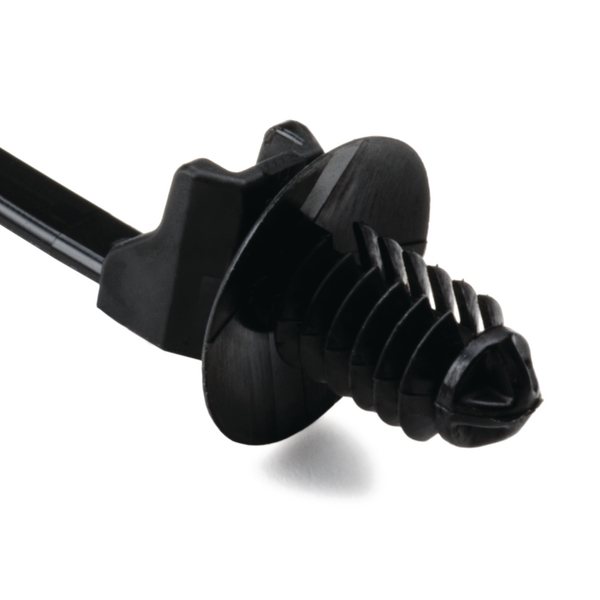

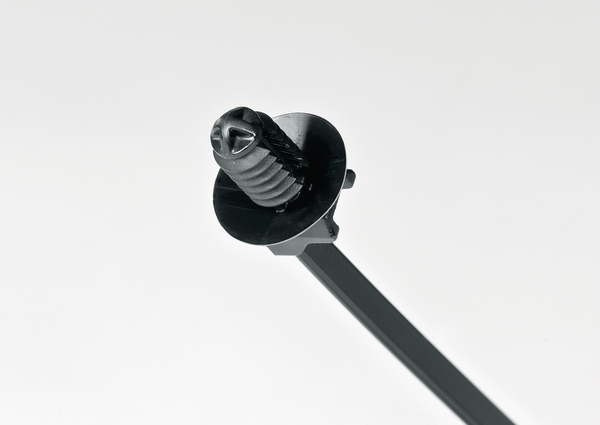

Fixing tie for hole (round), outside serrated, Ø1.0-35.0mm, black, 1500pcs.
Art.-No. 157-00228 | T50SOSFT6LGE-PA66HS-BK |  Details

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Downloads CAD-Download

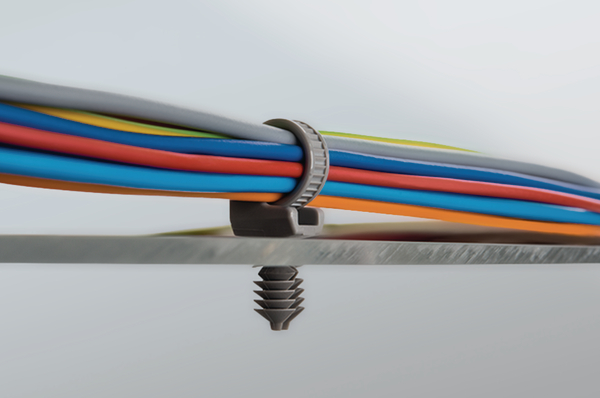

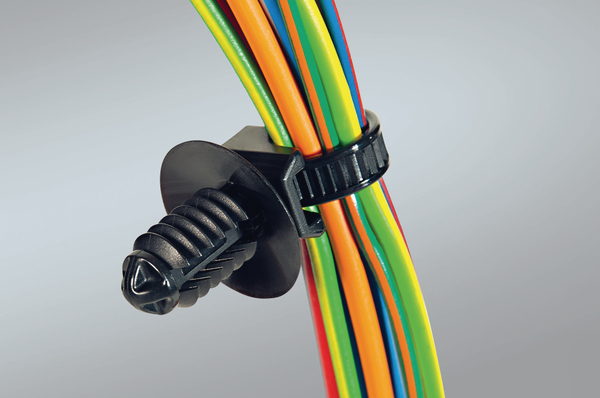

    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP, FTS_pro
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Key product features for faster processing
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Pack Cont. 1500pcs.
    Package Content packed in bag
    PART DESCRIPTION T50SOSFT6LGE-PA66HS-BK
    Part No. T50ST6LGE
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl

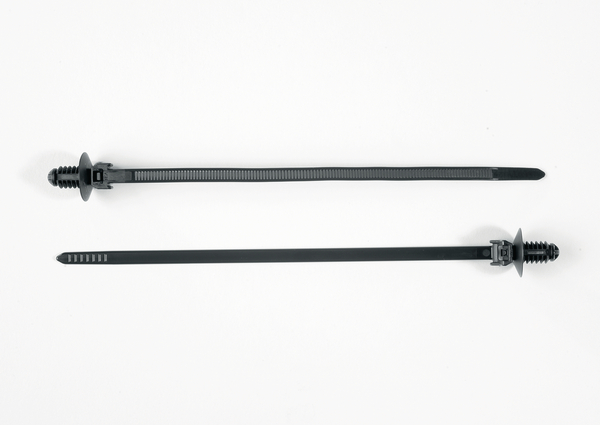

    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 16.0mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.7 - 7 mm
    Length (L) 165.0mm
    Min.Tensile Strength 180N
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+125 °C, 500 h)
    Specifications
    GTIN-13 / EAN 5022660344572
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.61m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.04099m³
    Packaging 1 - Weight (kg) 2.3625kg
    Packaging 1 - Width (m) 0.48m
    Packaging 3 - Height (m) 0.518m
    Packaging 3 - Length (m) 0.575m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1105m³
    Packaging 3 - Weight (kg) 10.676864kg
    Packaging 3 - Width (m) 0.371m
    Packaging 4 - Height (m) 1.221m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.172m³
    Packaging 4 - Weight (kg) 106.408kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703
