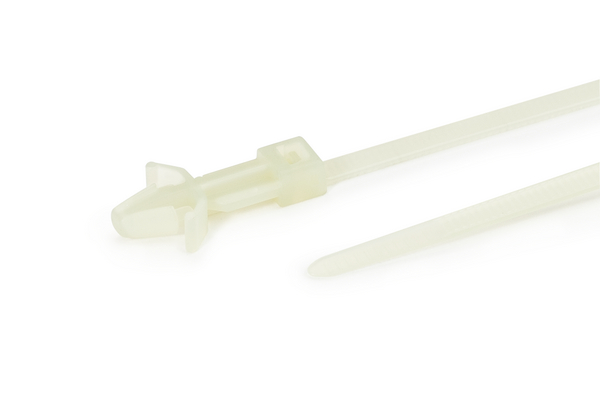

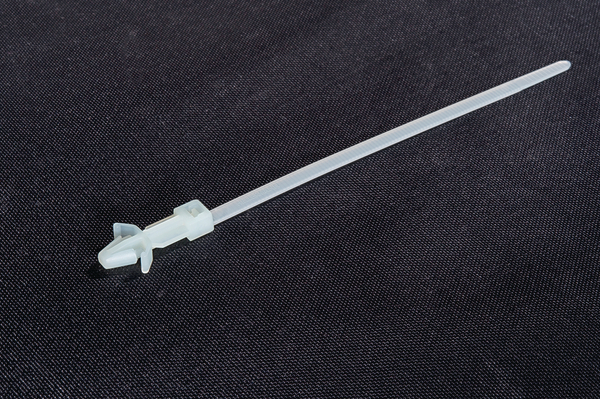

Fixing tie for hole (round), inside serrated, Ø1.6-25.0mm, natural, 1000pcs.
Art.-No. 155-41102 | T50SAH-PA66HS-NA Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SAH-PA66HS-NA
Pack Cont. 1000pcs.
Package Content packed in bag
Part No. T50SAHNT
Product Family for round holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SAH
Variant Inside Serrated
Bundle Diameter max (metric) 25.0mm
Bundle ∅ min. 1.6mm
Fixing Hole Shape Circular
Height (H) 1.27mm
Length (L) 160mm
Min.Tensile Strength 225N
Panel Thickness 0.03 " – 0.12"
Panel Thickness max. 0.7 – 3.0mm
Panel Thickness max. (imperial) 0.12"
Panel Thickness min. (imperial) 0.028"
Thickness (T) 1.2mm
Width (W) 4.6mm
for Hole ∅ (FH) 6.0 - 6.6 mm
for Panel Thickness min - max 0.7 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026227276
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 1.514135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 8000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.38108kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 181.56kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
